    Hole in ASA adapter

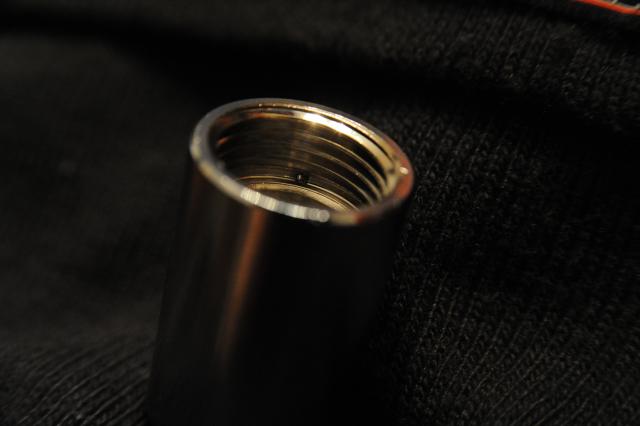

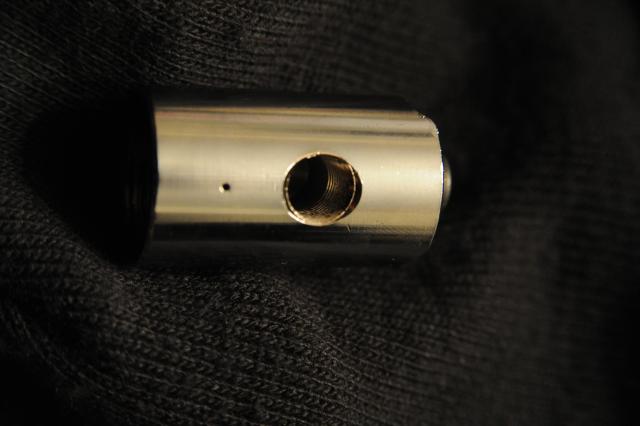

    I purchased an ASA on ebay. It was unused. It came today and there is a slight pin hole below the threads for the air connection that goes all the way through and out the very top of the inside threads. See pictures;


    I can't imagine that this serves a purpose. This is a machining error, right? Just want some feedback before I complain to the seller. It's no one from AO.
  • knownothingmags
    RKM 3D Designs

    • Apr 2010
    • 4810

    #2
    bleed hole for air when you unscrew a tank, its so the air escapes and releases the pressure.
    logoRKM 3D Designs

    Comment

    • Sk8ermog
      MOG = Man of God

      • May 2002
      • 4001

      #3
      Exactly what knm said. I bought a few of those from I&I on eBay and have had no problems. It should work great.

      Comment

      • athomas
        Of course it works-its AGD
        • Jan 2002
        • 8039

        #4
        That hole is a bleed hole as mentioned. It is located slightly behind the tank oring so that it will bleed off the air pressure once the tank is unscrewed far enough to release the pin on the regulator.
        Except for the Automag in front, its usually the man behind the equipment that counts.

        Comment

        • MAGgot
          Registered User

          • Aug 2008
          • 417

          #5
          Remove a tank from the old ASAs before they started putting these on all of them, THEN you'll know what it's for
          My Feedback

          Comment

          • Spider-TW
            U R techno-literate!

            • Oct 2006
            • 3554

            #6
            I have drilled a similar hole in the old AGD back bottle adapters. Those really need it. Their depressor pin was long and the threads were razor sharp.

            Comment

            • blackdeath1k
              Registered User
              • Jan 2002
              • 2436

              #7
              Not as much needed today. But back in the 90s when we all used co2 they were a must. Everyone I know drilled there own. It kept the tank Oring from freezing and breaking.

              Comment

              • fstop_22
                Registered User
                • May 2013
                • 220

                #8
                I was a little worried when I didn't see one on my classic mag. I guess I never noticed a problem w/o a hole because I use a gas thru grip. I thought it might be a bleed hole but wasn't sure. Thanks for schooling me before I embarrassed my self with the vendor.
