Luke's Mini Vert frame Ram placement

[knownothingmags]

Festo MHA1, MHP1 obviously not fitted with the rammer as that was made by WGP, I have my own cad files for the rammer if needed

yeah my buddy here, is looking for the rest of theirs in the shop for me,
not sure what I will do with them,
I actually got these because you had used them in your mag.

[OPBN]

http://www.parkermotion.com/literatu...0Cylinders.pdf

These are interesting.....

[RT Lover]

which would fit in the luke frame better the Clippard MPA-3 w/ Ram or one of the ep ones you guys posted? if you went ep what board would you use and how or where could you place it to acess it with ease?

anybody have experience with mounting location with a Clippard MPA-3 w/ Ram on a luke

[need4reebs]

http://www.parkermotion.com/literatu...0Cylinders.pdf

[RT Lover]

damn i need looks like we have another pneu dealer lol

where can i get a sear part like that?

[need4reebs]

damn i need looks like we have another pneu dealer lol

where can i get a sear part like that?

[RT Lover]

no way man…i don't even like sales threads eh!!!

you would have to get a G-Force frame for a sear part like in tha pics or try and get one of tha air smiths to make one for ya.

there were supposedly only 100 G-Force frames made…but not sure how many of them actually made it to tha peeps that paid for them??? it was a pre-order gone wrong i guess??

What else or other parts could I use to do the conversion?

[river031403]

these are very nice…just make sure to get tha single acting version and not tha double acting version. tha single acting version ha sa spring return just like tha MPA-3's that are used in most pneumags and if you look closely they are just smaller versions of a MPA-3 w/a housing around it:





but tha placement of the ram in these frames should be just like the placement in a intelli frame since tha top part of tha frames is copied from an intelli frame.

Any modifications needed on this ram?
Do you have a part# link to the exact ram?

[blamtro]

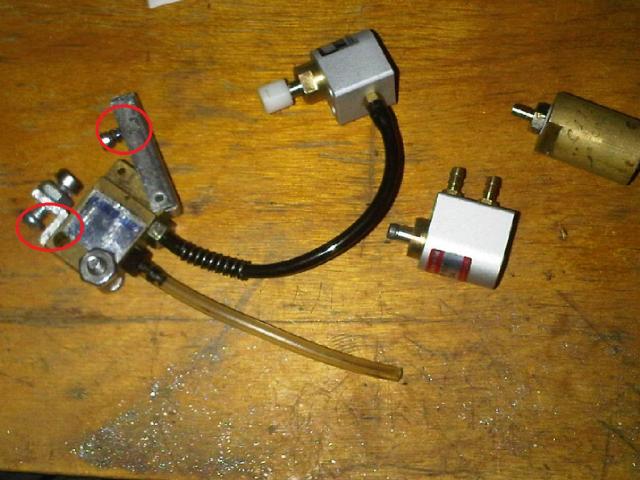

Reebs, How are the magnets attached in this picture to the MSV?


[BTAutoMag]

epoxy

[knownothingmags]

Reebs, How are the magnets attached in this picture to the MSV?

[ATTACH=CONFIG]89089[/ATTACH]

magnetism, the opposite poles keep them away from each other
what BT said epoxy

[need4reebs]

Reebs, How are the magnets attached in this picture to the MSV?

[ATTACH=CONFIG]89089[/ATTACH]

just super glued the 90* bracket to the MSV.

[need4reebs]

these are very nice…just make sure to get tha single acting version and not tha double acting version. tha single acting version ha sa spring return just like tha MPA-3's that are used in most pneumags and if you look closely they are just smaller versions of a MPA-3 w/a housing around it:





but tha placement of the ram in these frames should be just like the placement in a intelli frame since tha top part of tha frames is copied from an intelli frame.

oh and by "these" frames i mean Luke's frames are like the top part of a intelli frame is copied from a intelli frame…so the placement of the ram should be tha same.
