(Fixed) Tried Rebuilding My X-Valve and Now the Gun Does Nothing...

[cmaples]

Took the plunge and bought a used mag (x valve and ULT). After watching the videos and looking at the valve diagrams, I was feeling like Billy Bad Ass and tried to rebuild the gun's x valve using the official AGD x-valve parts kit. I've clearly done something wrong. Gas it up, pull the trigger...nothing happens. I could have sworn I followed the diagrams and put everything back together correctly but it is soo hard to tell the different o-rings, teflon washers, etc apart. Any idea what I did wrong?

This is the image I've been working off of: http://www.pblegion.com/attachment.p...1&d=1222976503

Any help determining which of the white rings are o-rings and which are hard flat teflon "washers" would help me double check my work.

Thanks,

cmaples

[OPBN]

Not meaning to rub salt in your wounds but was the valve leaking? First basic rule of AutoMag ownership is "don't fix it til it's broke".

If it was leaking, was it at least firing before? Could be a number of things. A picture of the marker make actually help as well. More information on set up. Sometimes it may not be the valve at all and may be that the sear rod isn't adjusted properly. Post up a pic of the valve aired up and in the marker.

[fz6soldier]

Take out the on/off and oil it up really good inside and out. Oil the whole gun. this fixed my mag issues manny times. These things love oil.

[Laku]

Have you tried increasing the velocity? It won't cycle unless it has enough pressure.

[Cyco-Dude]

Any help determining which of the white rings are o-rings and which are hard flat teflon "washers" would help me double check my work.

there are no teflon o-rings in a reactive valve. you are using, from front to back: a reg seat o-ring (lvl 10 carrier o-ring), a power tube o-ring (for the rt on/off bottom), a small rt on/off o-ring (goes inside the on/off bottom), a reg pin assembly o-ring inside of a power tube o-ring (seals the on/off pin with the valve body), two reg pin assembly o-rings for the regulator pin assembly, another reg seat o-ring, a fourth reg pin assembly o-ring (fits in the regulator body), reg body o-ring, reg piston o-ring. zero teflon o-rings, as none were included in the parts kit.

there are two plastic washers in the valve. the larger one is used in the power tube (part 9), which goes in before you put the lvl 10 carrier into the power tube. there's also a small split plastic washer which goes on the valve pin assembly in-between the two o-rings there. it's not called out on the diagram you listed; it just notes the valve pin assembly itself (item 27).

[NU_METAL]

Any help determining which of the white rings are o-rings and which are hard flat teflon "washers" would help me double check my work.

Thanks,

cmaples

Which kit did you use ? Have a feeling you may have used the kit over to the left labeled "Automag parts kit " That one is mostly for Classic valves.
The new O rings (in the kit that you used)sometimes all appear to all be white ,if theres a Teflon oring in your rebuild ,that would be an issue rite there ,as White Teflon Orings only go to classic valve on/off's . Using the diagram you posted Check your on/off for a Teflon White o ring in place of #17 or #20 . Look @ pic below . Kits to the right are what you need ,for an entire X-valve Lvl10 rebuild.
. If this is all good ,then i suspect " Bolt stick " . Your carrier for the Lvl 10 is too tight or backwards ,or added too many shims . Using the same Oring #7 (000844), keep trying different carriers ( brass in X-valve parts kit )till it works ,yet doesn't leak . I know this is tricky the first time around, but you'll get the feel of it soon enough . This is an important step for your future rebuilding knowledge
Im assuming everything worked fine until you went to rebuild valve ?

[cmaples]

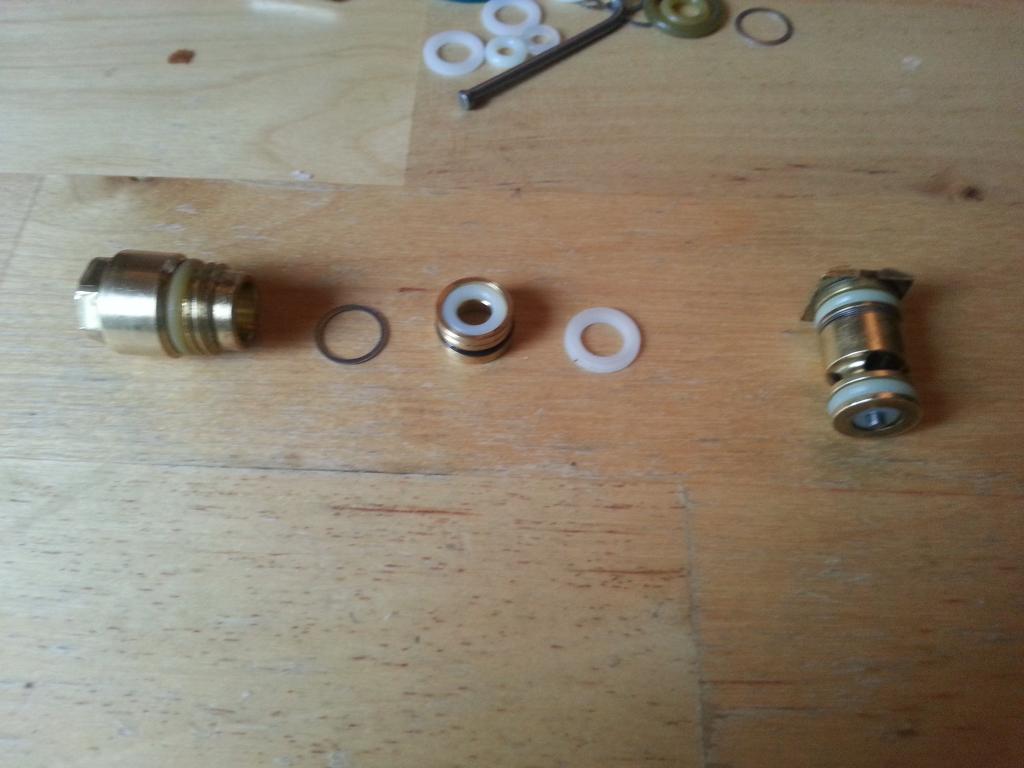

Nu_metal - Everything was pretty much fine until the rebuild. I bought the "X-valve" parts kit in the picture but it didn't come with any of those brass carriers. Is it supposed to have those in the kit? Might have gotten gyped. Here is a picture
of the power tube parts in the order I had them installed and the on/off valve. The white ring to the left of the on/off valve is one of those "plastic washers" that I'm probably mistakenly calling teflon.


This all would be much easier to explain verbally. I'd be happy to PM my phone number to anyone who wouldn't mind spending 5-10 mins on the phone helping the N00b :-)

I'll try to put together a bigger write up with pics when I get home. On a side note, are the o-rings pretty stiff when they are new? usually o-rings are soft, a little stretchy, and easily squeezed together such that the sides touch, but all of my white o-rings were very stiff and difficult to squeeze or stretch.

thanks,

cmaples

[cmaples]

Thanks Cyco-Dude. I should have said plastic washers. I'll take it all apart tonight and post some pictures of the parts in order.

[Nobody]

Assuming that you uad repoaced everything the way it came off the valve, then check your sear rod length. That would prevent firing. Also, make sure that your on/off pin is the right way in. Make sure the "ball end" goes into the valve & the flat to the sear. After that, you are beyond my Xvalve knowledge.

Paging the Mag Whisperer...

[Cyco-Dude]

first of all, the x-valve rebuild kits do not come with any brass lvl 10 carriers.

second of all, you have a ULT on/off. you probably need to add a shim or two. i bet you just didn't put them all back after you took it apart. just be careful that it's a ult shim and not a lvl 10 shim. they are the same size, but the ult shim is about half the thickness of a lvl 10 shim.

[cmaples]

Cyco - Good call i had the wrong shims in it (still might actually as trying to tell the difference between 1 sheet of paper thickness and a 1/2 sheet of paper thickness is crazy hard)

1) with the valve outside the gun I ran some low pressure air through it. While holding the On/Off top in the valve and turning the air on the On/Off pin popped out and pressure started to build up behind the bolt. So far so good.
2) Setting the bolt spring aside, I put the bolt and valve back in the gun (without the bolt spring). Medium pressure air through the gun, airs up, no leaks. Pull the trigger, gun fires but bolt doesn't reset (because there is no bolt spring in it). Air leaks down the barrel (because the bolt didn't reset) but holding the trigger in stops the leak. This also seems like expected behavior and a good sign.
3) put the bolt spring back in, gun is fully assembled. Add high pressure air, pull the trigger, gun won't fire.
4) took the trigger frame off, put the bolts back in so now the body and valve are bolted to the rail. Now I can air everything up and look at the sear. High pressure air, the bolt doesn't look like it is moving forward to catch the sear. move the sear around, nothing happens. Is this describing bolt stick? I wonder if the front edge of the bolt is catching the lip in the body that the bolt spring rests on.

Any ideas anyone?
oh yeah when reassembling I cleaned all the old lube out and used Lucas Oil 10533 White Lithium Grease on the reg spring pack and Super Lube 51004 Synthetic Oil with PTFE, High Viscosity, on everything else.

Thanks in advance,

cmaples

[Laku]

What lvl 10 carrier are you using? Try going to the largest size carrier. Reason being, if you changed the power tube o-ring you'll need to retune you lvl-10.

Oh and remove that shim from lvl-10 (if installed), you shouldn't ever need one.

[Cyco-Dude]

What lvl 10 carrier are you using? Try going to the largest size carrier. Reason being, if you changed the power tube o-ring you'll need to retune you lvl-10.

it could be that it's now too tight, but if he only has the one carrier, tuning is limited to just trying all of the lvl 10 / reg seat o-rings he has and finding the one that fits the best.

cmaples, you can use lvl 10 shims in the ult, you just have to be mindful of it. umm...not firing with spring (lol?). tank pressure too low, tank output pressure too low (have you tried a different tank?), valve velocity too low, sear trigger rod length too short, not enough shims in ult, too much friction in lvl 10 carrier. dunno about "high viscosity" oil...might gum up the works if it's too thick.

[athomas]

The X-valve parts kit does not come with carriers. They only come with the Level 10 bolt kit, or you can order them individually. If you don't have any, you should get a few from size 0 to 2.5. You won't need to buy the one(s) you already have.

You shouldn't ever get bolt stick when you aren't using a bolt spring. There will always be enough force on the bolt stem because there is nothing pushing back. The fact that it worked without the bolt spring using low pressure air is a positive sign. Make sure the bolt is fully in the reset position, or the sear won't rotate forward to open the on-off pin. This holds true, even if there is no bolt spring. When you are testing, make sure you push the bolt back when it is aired up. You can push the bolt back with a squeegie or dowl through the front.

Often when you install a new carrier and oring that is too tight, the bolt doesn't sit in the reset position due to the spring not having enough force to reset it. This is bolt stick. The same bolt stick will prevent the gun from firing even if it is in the reset position, because the air in the chamber does not have enough force to overcome both the spring force and the friction force of the oring on the bolt stem.

[NU_METAL]

oh woops sorry i didnt notice i had put my extra carriers in the kit

this is a cool reference site : http://www.airgundesignsusa.com/xmag/html/lvl10.html

I'll try to put together a bigger write up with pics when I get home. On a side note, are the o-rings pretty stiff when they are new? usually o-rings are soft, a little stretchy, and easily squeezed together such that the sides touch, but all of my white o-rings were very stiff and difficult to squeeze or stretch.

These o ring are made of a higher durometer . (90) i was told by AGD . Yes that means they are harder to squeeze with your figures and are usually yellowish / off white in color .Mags run with a higher pressure so these withstand it and last longer . The soft black rubber o rings would blow out ,cut and fail alot faster
