X valve diagram

[azheat99]

[trbo323]

I could use this as well

Sent from my Moto Z (2) using Tapatalk

[azheat99]

Sent from my iPhone using Tapatalk

[trbo323]

Well it's a start, I'd love to find the o ring sizes, and specs if possible

Sent from my Moto Z (2) using Tapatalk

[trbo323]

It's not a chart but I found this
It specifies 90D polyurethane if not started otherwise

Originally posted by Justus:
X-Valve (for RT-Pro, RT Custom, Emag, and Xmag; 1 rebuild)
2 Power Tube (on/off bottom) O-rings - 010
1 Reg. Piston O-ring - 012
3 Reg. Seat O-rings - 008
1 Reg. Body O-ring - 017
2 RT On/Off Small O-rings - 004
4 Reg. Valve Pin O-rings - 006
5 L10 Carrier o-ring - 008

Sent from my Moto Z (2) using Tapatalk

[trbo323]

Super cool

One question, what is the B next to part number 4?

Sent from my Moto Z (2) using Tapatalk

[Xyxyll]

Sorry, made a quick update for consistency. Reposted below.

Pulled out an old clipboard where I jotted a lot of sizes down. Compared them with some of the other notes in this thread and in this one: https://www.automags.org/forums/show...8-O-ring-Sizes

With that, I annotated this exploded view with sizes. This is consistent with the first X-Valve I pulled apart. The only conflict is my X-Valve has a 018 o-ring on the reg nut, not 017. I suppose it's possible it by default uses a stretched 017. Can anyone confirm the correct sizes?

See updated diagram below.

[Xyxyll]

Super cool

One question, what is the B next to part number 4?

Sent from my Moto Z (2) using Tapatalk

Buna. All the other o-rings are the more expensive polyurethane.

[trbo323]

I've heard bunas can work they just don't last as long, any experience with that?

Also, do the o rings differ on a ule assembly?

Sent from my Moto Z (2) using Tapatalk

[Xyxyll]

I think I found my confusion between 017 and 018. Pulled out the caliper and measured the body o-ring.

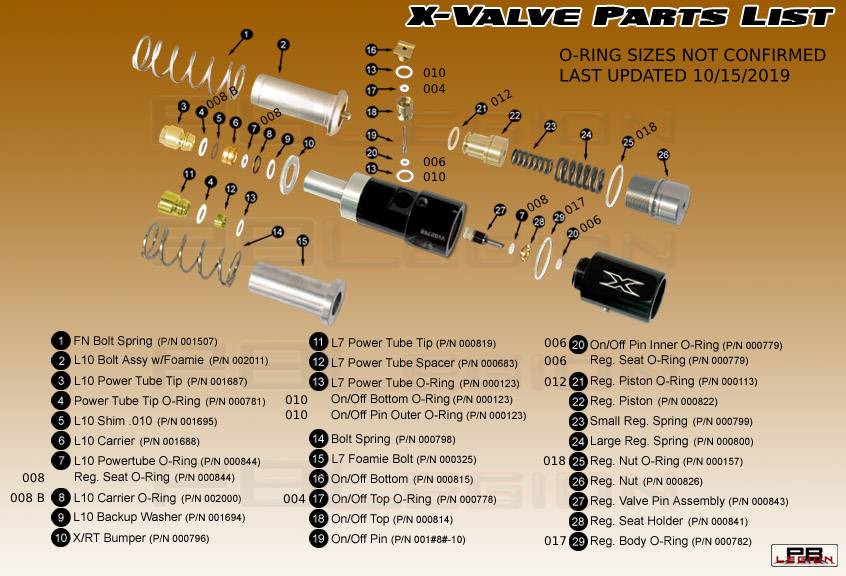

Updated exploded view here:

X-Valve Parts Kit Annotated Exploded View.jpg

[azheat99]

[trbo323]

Lol, I found that as well

I feel like what we are looking for was at one point out there and easy to find but not really at this point because they have been copied and pasted and saved so many times the resolution has gone to crap for the ones we can find

Sent from my Moto Z (2) using Tapatalk

[Bunny]

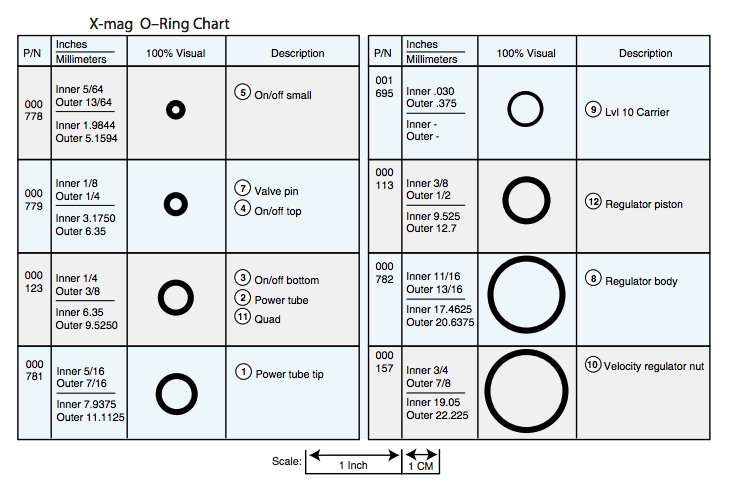

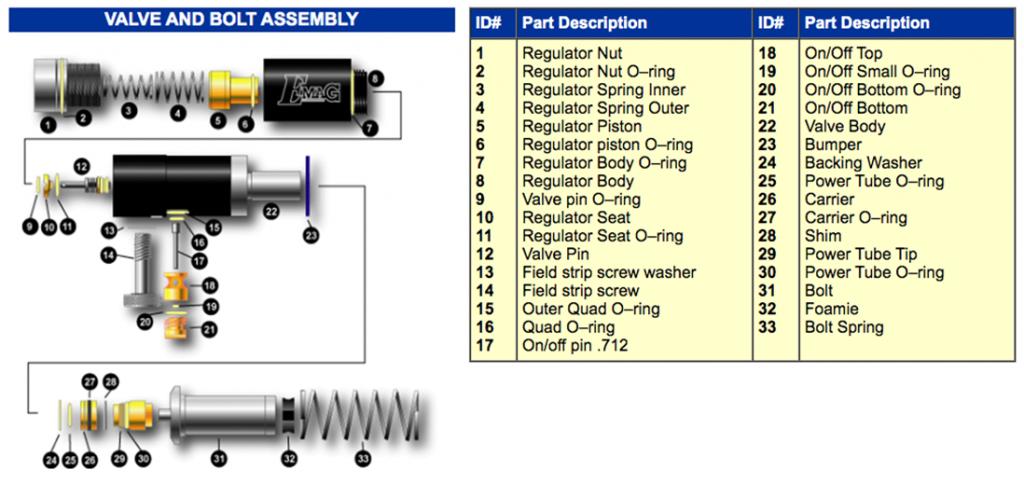

I was able to find the HTML that AGD use to host on www.airgundesigns.com I would need to get it rehosted, but I clipped/edited part of the Diagram. Does this help?


Oring Guide.png

[azheat99]

Nice![emoji1360]


Sent from my iPhone using Tapatalk

[c sherer]

Been a few years since activity in this thread but wanted to see if there were any new/better high resolution explody diagrams of the various valves?
I'm looking to print and laminate them at 8 1/2 x 11 size to keep in my gear box for field reference and the ones referenced in this thread print out fuzzy.
Plus the main one I found was last updated in October 2019 saying "oring sizes not confirmed". Be reallly coool if someone has updated it with oring sizes.
Yes I know about the magmats. If I could find the source graphic for those... that should work too! But I've not found it.
