    Having a prob with warp on/off + LED

    Well im trying to hook up my warpfeed with a on off switch but also have a LED so that when the switch is on the LED is also on. heres whats happening. When i have the LED in the seqeunce it starts off REAL dim, but when i push the button on the warp it gets real bright but the warp doesnt turn at all (the switch is in the on the position the whole time). If i take the LED out of the sequence and just have the switch and the warp it works perfect. Any ideas?

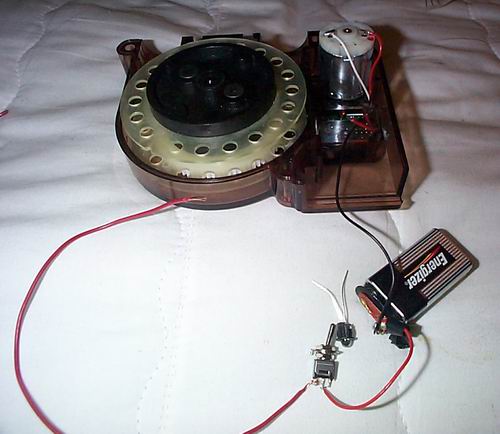

    heres a pic:



    ------------------
    http://www.galaxy-pc.com/mag <---my automag

    http://www.galaxy-pc.com/mag/wiringdiagram.jpg <--- Warpfeed Intellifeed diagram


    Baseone Paintball

    Blue Freeflow Matrix #7 of 15
    Old Matrix #649
    Tags: None
    • X-Plosive
      AO's sexiest member, and biggest post whore :)
      • Mar 2001
      • 1807
      #2
      What voltage are you suppose to run that particular LED on?


      Taking mags apart is fun, its even more fun when you don't know what you're doing

        Comment

        • DryIce
          Team Crime Scene
          • May 2001
          • 471
          #3
          not sure i threw the package away =(
          but im just curious to why its taking ALL the power away from the warp

          ------------------
          http://www.galaxy-pc.com/mag <---my automag

          http://www.galaxy-pc.com/mag/wiringdiagram.jpg <--- Warpfeed Intellifeed diagram


          Baseone Paintball

          Blue Freeflow Matrix #7 of 15
          Old Matrix #649

            Comment

            • AGD
              The man from AGD

              • Oct 2000
              • 5916
              #4

              The LED has too much resistance and will not drive the motor. Bad idea anyway because it will drain the batteries faster.

              AGD
              sigpic

                Comment

                • DryIce
                  Team Crime Scene
                  • May 2001
                  • 471
                  #5
                  k it was a LED i had from awhile go anyways thats why i didnt have the packaging =)
                  thought a cool blue LED would look good but i guess not!
                  ill just stick with the on/off
                  thanks tom

                  ------------------
                  http://www.galaxy-pc.com/mag <---my automag

                  http://www.galaxy-pc.com/mag/wiringdiagram.jpg <--- Warpfeed Intellifeed diagram


                  Baseone Paintball

                  Blue Freeflow Matrix #7 of 15
                  Old Matrix #649

                    Comment

                    • Bartman
                      Canadian Newbie
                      • Dec 2000
                      • 458
                      #6
                      You can wire in the LED after the switch,

                      You may need a risitor to help the LED out, the 9vt of power may be too much for the little led to handle.

                      I know when I wire in my switch, and the 12vt reg I had to add a risitor to the led so it wouldn't get too much power and burn out, if I rember right I added a 470ohm risitor to the circute of the LED .

                      Bartman
                      team I have No Idea
                      www.ihni.org
                      Bartman
                      www.stdindustry.com
                      AKA tech
                      AKA Factory team

                        Comment

                        • DryIce
                          Team Crime Scene
                          • May 2001
                          • 471
                          #7
                          the LED was after the switch
                          it went like this
                          Batery-->Switch-->LED-->Warp

                          ------------------
                          http://www.galaxy-pc.com/mag <---my automag

                          http://www.galaxy-pc.com/mag/wiringdiagram.jpg <--- Warpfeed Intellifeed diagram

                          [This message has been edited by DryIce (edited 08-21-2001).]


                          Baseone Paintball

                          Blue Freeflow Matrix #7 of 15
                          Old Matrix #649

                            Comment

                            • Mossman
                              habitual line stepper
                              • Oct 2001
                              • 3751
                              #8
                              the LED probably wants only a couple of volts. Tom said that the LED is providing too much resistance. Maybe not such a high power LED? if you added a resistor inline, that would be bad for the warp right?

                              Now, i know nothing about electronics, but how about running a 2nd set of wires off the on/off switch so that the flow the warp is getting hasnt already powered an LED?
