18 Volt Warp Feed Mod!!!!!!

[p8ntbal4me]

*If the picture link goes dead, here is a back up*

[Ghola]

you would get better battery life if you used 5v reg to the board
a npn transistor would prolly be smaller than the reed relay
and if you want to get really creative you could also use an adjustable reg for the motor

[p8ntbal4me]

you would get better battery life if you used 5v reg to the board
a npn transistor would prolly be smaller than the reed relay
and if you want to get really creative you could also use an adjustable reg for the motor

Yeah I just wanted to keep the mod simple, easy for someone to do that didnt know electronics like myself, and can find all the parts locally to them.

I would like to have used a smaller reg but Radio Shack doesnt carry them.

[ghost flanker]

Does anyone still have the wiring diagram for this?

[luke]

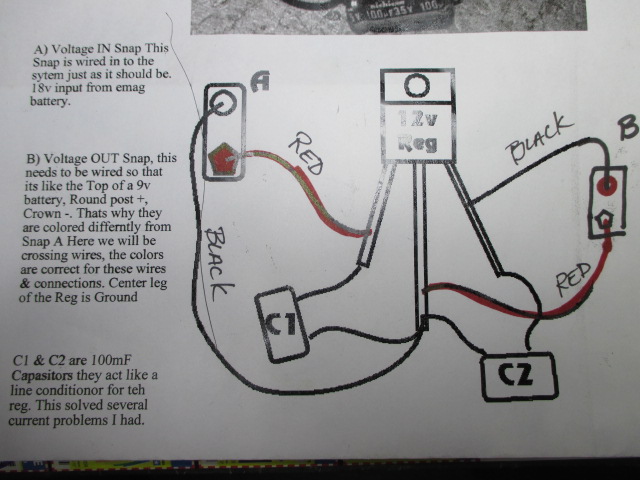

Here you go

12v 002.JPG

[ghost flanker]

That was quick. Thanks, Luke!

[luke]

Your welcome..
