Kicking around an idea.

[MrBlack]

I was kicking around an idea for a while and finally got around to making a few prototypes of this. With a working knowledge of Autocad2013 it was easy to 'draw one up' and make changes to it. I wasnt going to do a full run until I found out what the market would bare for one of these.

These are v2.5 so to speak. (red rounded edges instead of 90s)

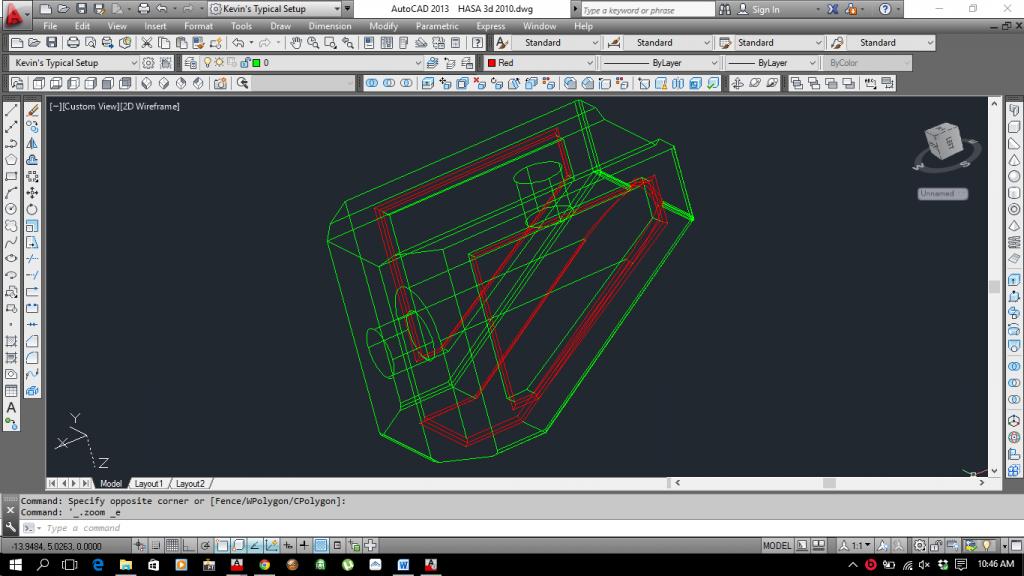

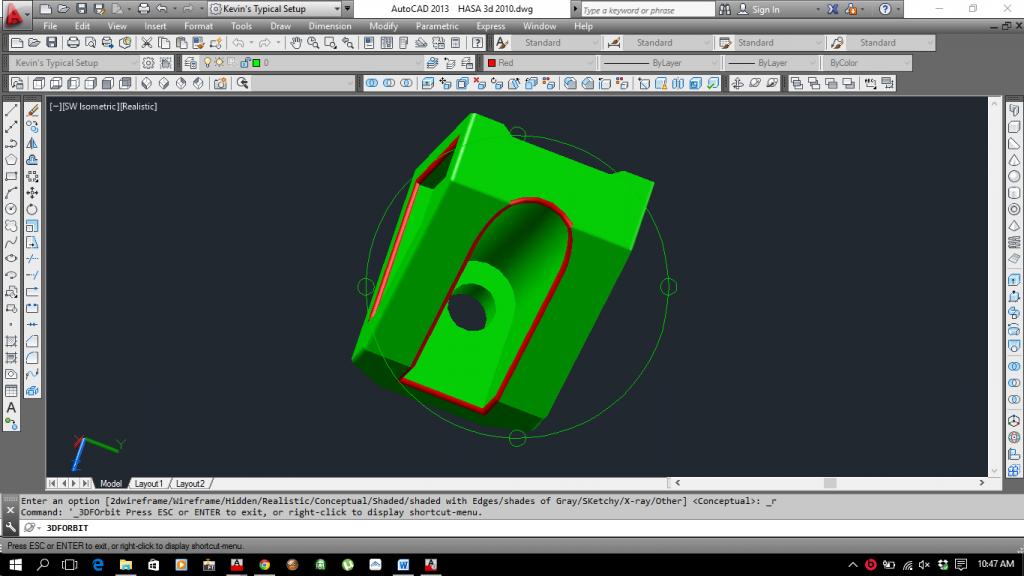

Screenshot 2015-09-30 10.46.28.jpgScreenshot 2015-09-30 10.47.03.jpg

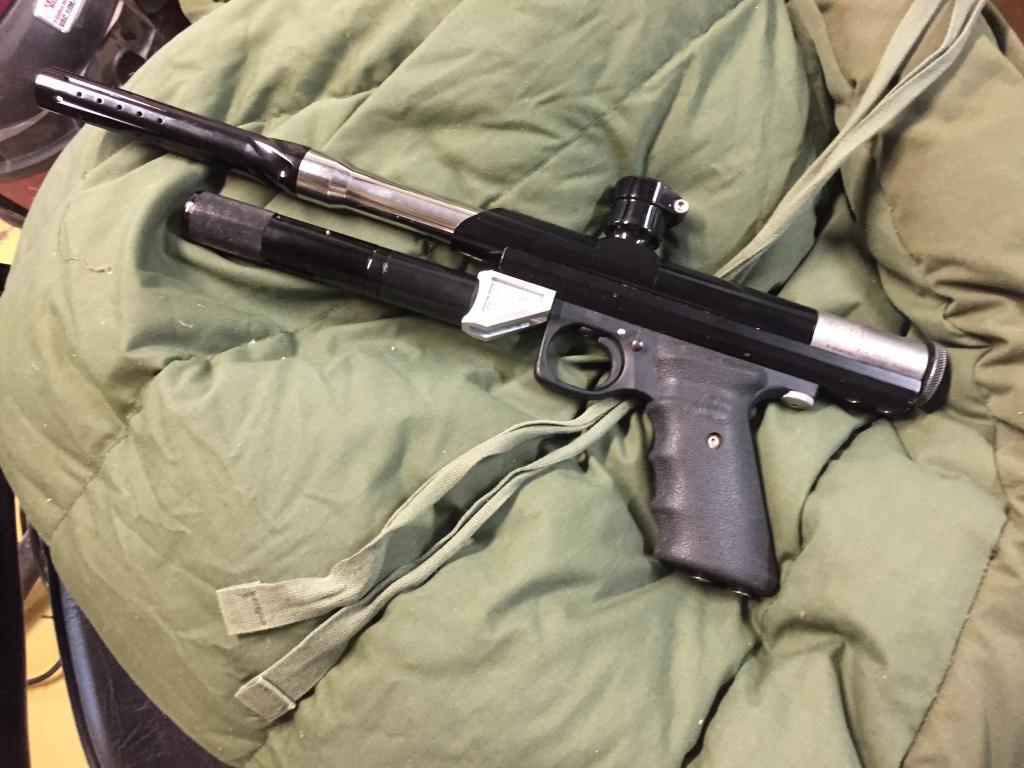

this is the v2 on gun
image1 [15443].jpg

Any suggestions would be great

Kevin

[Cyco-Dude]

it's a very niche product, and you'll be competing with these. yours is tighter to the gun, while the other allows for 13ci bottles.

[knownothingmags]

and if you don't go the route of machining you can always print them out of the material PEEK.

[skipdogg]

Yes please!

[MrBlack]

I saw the ones that you linked Cyco and I like the fact you can run a 13ci bottle...it reminds me of my first VM-68 with a 20oz hanging off the front. Mine you cant and you are right its a niche product if someone is running 12gram. My idea was to keep it tight and compact as possible and not weighing down the marker. I still need to get a body sent to Docs Machine for the spring tube mod.

I have one that has been printed but the tolerances were a bit off due to the materials the printer was using wasnt a production printer. I am going to see if I can make it out of other materials before I decide on a plastic or aluminum.
