RainMan pump kits!

[El Zilcho]

Is there still a gap between the Armada rail and RM bracket?

[OPBN]

Is there still a gap between the Armada rail and RM bracket?

Yes.

I'm going to take some time this afternoon and tear apart my other pump Mag to see if the kit binds in that rail.

[captian pinky]

honestly if mine comes with a .125 rod im going to pull it off and make my own. is not hard to do just requires a die and correct rod. im sure he did the .125 rod because its easier and cheaper to get. i believe the correct diameter is 3mm if i remember right.

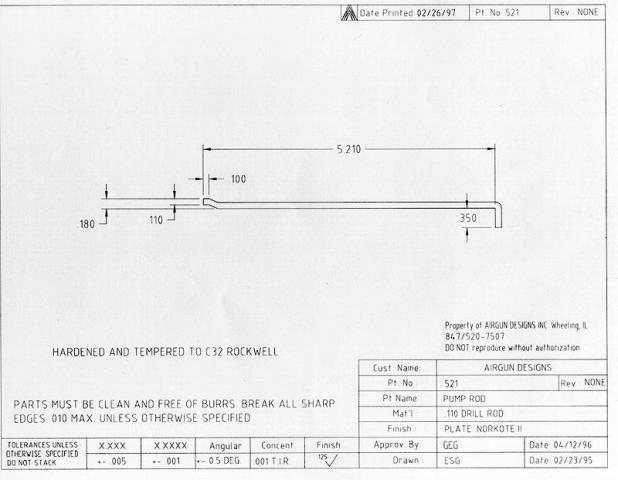

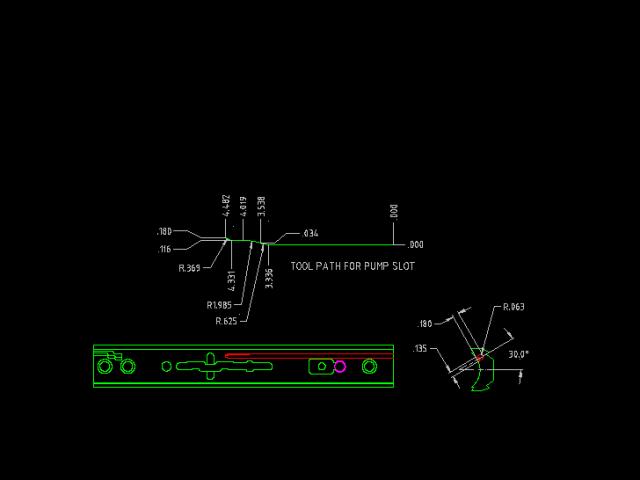

did find these on my computer though

railpumpspecs.jpgpumpwire-800_zps959df269 (1).jpg

[BLachance75]

Wouldn't you need to get a new back plate. If Rainman tapped them .125 how are you going to thread in a .110 rod. You'll either have to get a new plate or fill the hole then rethread it.

[captian pinky]

it will not be perfect but i do believe there is a range in which the threads work. but i might even try throwing it in a drill and sanding it until it worked. its been along day not sure if that made since.

[captian pinky]

and of course mine looks like crap. I listed the problems i saw with my kit below.


threads look like crap.


hole is not deburred.



oval is off center like everyone else.



handle mounted off center



anno blem







flat spots on the pump plate at the bottom.









not to mention this isn't even the same handle design he had before.

[OPBN]

In checking mine closer, I do have the same issues described above. I consider the deburing and threading non issues. The other flaws in my case don't necessarily matter as I will be getting everything anodized again or it will be covered, but they are there.

[debruynda]

These are the new ones? Sucks but thanks for posting I was going to buy one but not now.

[captian pinky]

the threads are actually pretty rough on that rod and could have done a better job myself. the deburring was not really an issue but when i purchase something brand new i expect it to be complete and ready to bolt on. If it was in the description that i would have to rethread the rod,debur the hole, mount the handle correct etc. i might aswell have made my own kit. he sent me a message and told me to mail it back to him so hopefully he replaces it with a correctly machined one.

[Levi]

and of course mine looks like crap. I listed the problems i saw with my kit below.

Mine looks pretty much the same, except I don't have the anno blem.

My question is... why did these leave his shop in this condition?

[CLEARUSH]

well here is a post of his pump kits that clearly show that there is no gap between tha rail pump kit mount...maybe that was before day one tho...haha...oh wait thats not possible??? my last Rainman229 pump kit didnt have a gap and it didnt have any binding issues on any rail that was used.

http://www.mcarterbrown.com/forums/rainmans-custom-corner/31036-pmag-thread-4.html

that little gap is most likely wats causing tha binding issues....and as quickly as yall put your money in his pocket to get him tha cashola to do this run...he should have no problem fixing a mistake. id be pissed!!!

No my pump kit mounts exactly the same way ya'll is mounting I do have the gap just like the current ones.

I've had to adjust the rod externaly since the mount point on the plate and the slot for the rod are not perfectly aligned and it caused intermittent binding. Once I had my rod adjusted to go straight into the pump slot I have not had any issues for the last several years and its is my primary.

The gap isn't the issue the pump rod needs to be adjusted externally to line up with pump rod slot and the binding should disappear.

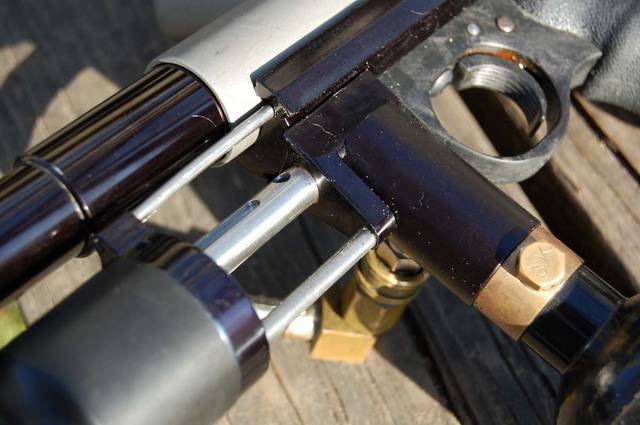

Notice the curve of the pump rod between the pump plate and rail.

[captian pinky]

The pic you posted is a gen 1 kit and that issue should have been fixed before this run.

[captian pinky]

mailed my kit back to him and he just refunded my money because he said he could not find a kit that suits my standards. not that they were that high just normal for purchasing a new part made by a machinist.

[need4reebs]

mailed my kit back to him and he just refunded my money because he said he could not find a kit that suits my standards. not that they were that high just normal for purchasing a new part made by a machinist.

wait so now you wont have a pump kit??? thats a bummer man!!

[captian pinky]

nope not only was i the one that started the thread that lead to the pump kits being made. i sent all the people from pbnation and AOto him. i asked multiple times to purchase a new kit from him before there was even talk of him doing a run. when he had one kit left he wouldn't sell it to me and even called me a prick. i waited patiently for months( paid jun 20th) i get my kit that has issues and he said for me to mail it to him assuming he would replace it. then i got the refunds. needless to say i am done with rainman period.
