Lukes vert mini in the Pneu'd

[Patron God of Pirates]

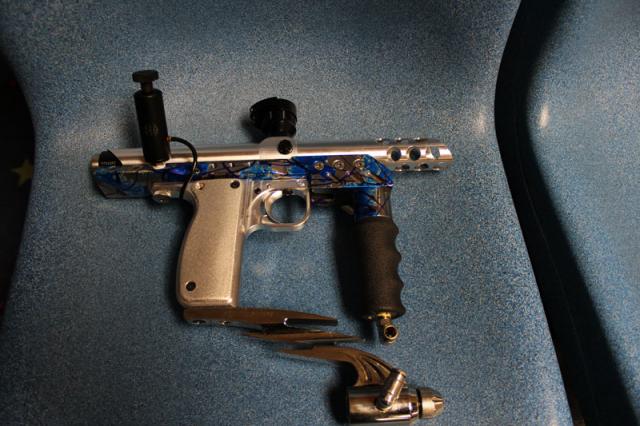

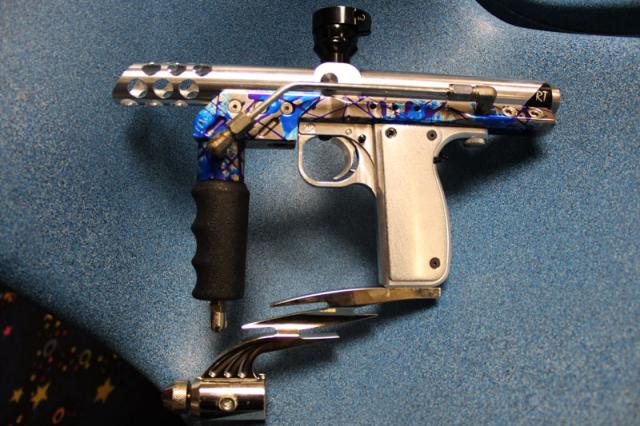

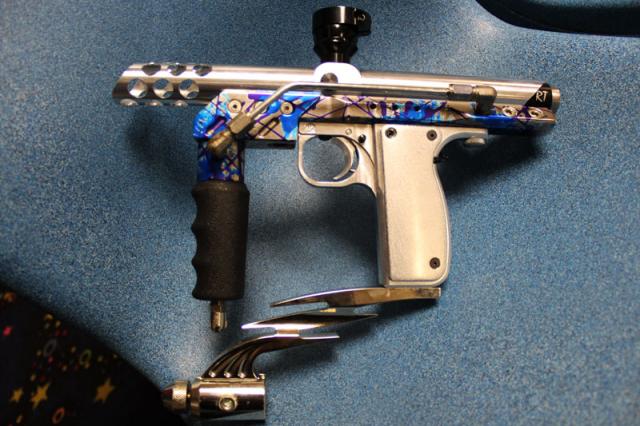

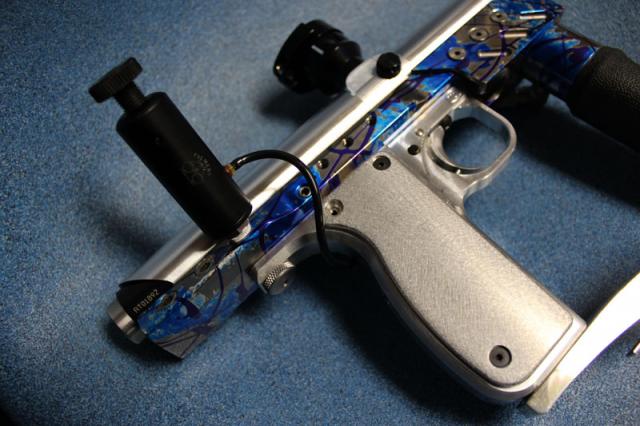

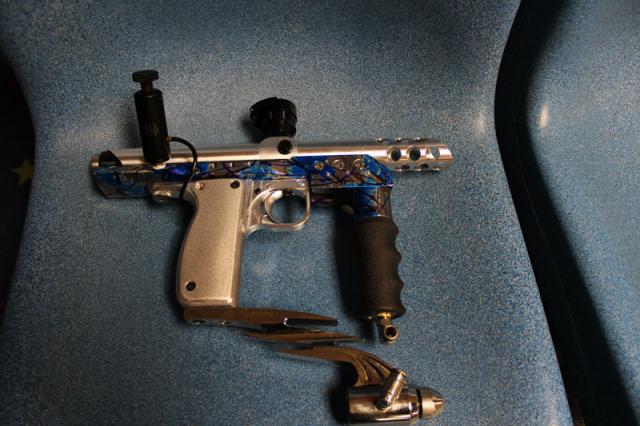

This is the first Pneu-job I've done myself. It's actually been done for months but I noticed Luke mention that he hadn't seen any of these frames pneu'd yet. My goal is to incorporate as many AO products on here as possible.
Specs so far:
LV 10 classic RT
Lukes Vert Mini single trigger
XMT AL classic RT body
Mag79 pneu kit
Palmers Micro-Rock

would love to see an AO made drop and ASA to replace the CP parts on the bottom.

[BTAutoMag]

someone finally did it!

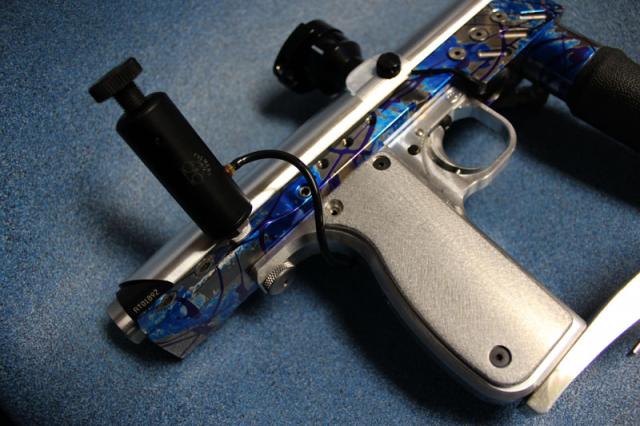

on a side note... do something else with the reg, put a 90* elbow on it or something

[yellowmitten]

LOOKS SO GOOD!! Ahh you beat me to it, just on the wait to find parts. I might be the first double trigger. Fingers crossed. how easy was the placement for the ram?

[Patron God of Pirates]

on a side note... do something else with the reg, put a 90* elbow on it or something

No way! I love it like that. Reminds me of the Junon Cannon from Final Fantasy 7. I'd love a functional excuse to stick four more on the other open ports just like it. Where the hell are my air powered accessories!

[need4reebs]

No way! I love it like that. Reminds me of the Junon Cannon from Final Fantasy 7. I'd love a functional excuse to stick four more on the other open ports just like it. Where the hell are my air powered accessories!

haha..just put some empty LPR housings on there…haha

Damn too bad these frames weren't made to be ready for a pneumag…they really don't look like there was much room in tha frame?

how does it shoot?

[Patron God of Pirates]

haha..just put some empty LPR housings on there…haha

Damn too bad these frames weren't made to be ready for a pneumag…they really don't look like there was much room in tha frame?

how does it shoot?

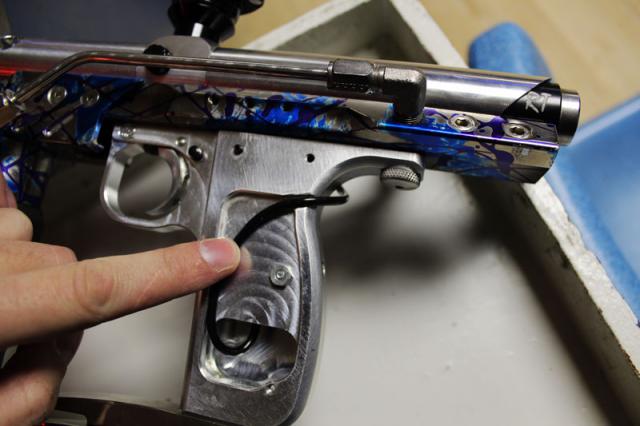

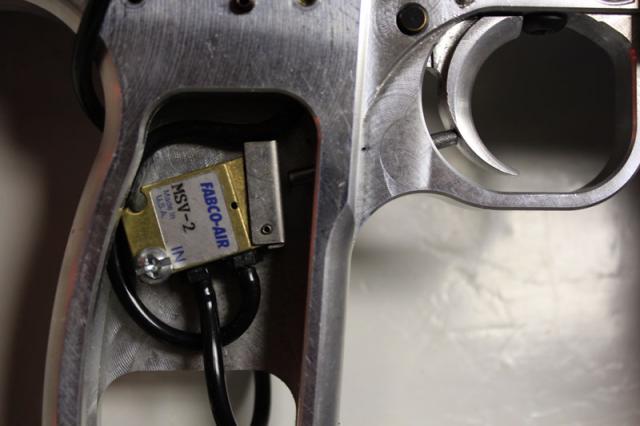

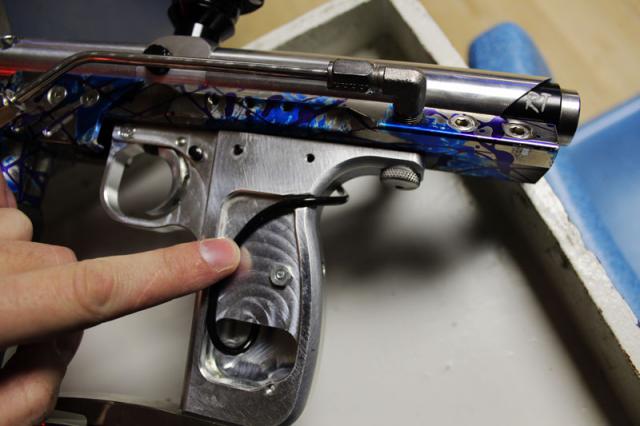

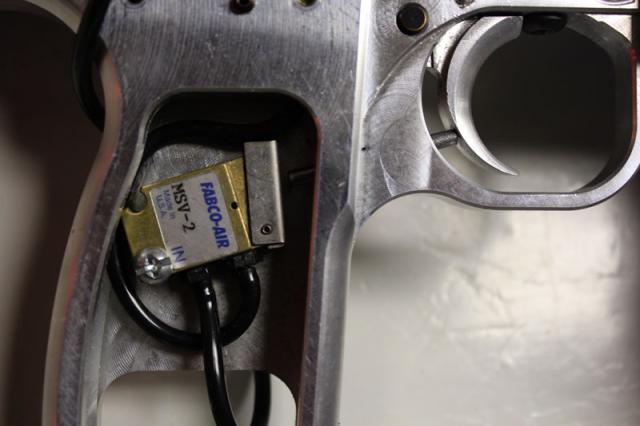

They are pretty darn close to ready. The "sear housing" portion of the frame is sized perfectly to fit the ram. The grip panel mount holes are well positioned to double as set screws for the ram, but I found in necessary to tap another one so the ram wouldn't come loose when you took the panels off. The broad flat panel on the inside gives you many options for mounting the switch. Very little modding needed.

The pneu frame functions perfectly off the body but once mounted it sometimes requires a double pull to get the sear to release. I ran out of air while tuning it a few months ago so I probably wont be able to work on it again until after the thaw .

PS- with the cut down level and trigger rod positioned where it is the pull is noticeably heavier than my other pneumag, but also much shorter. This setup seems to make more sense given that it's a single trigger.

[Patron God of Pirates]

how easy was the placement for the ram?

Practically a drop in.

[luke]

Sweet! Version 1 and a single trigger.

In regard to the double trigger pull, could your ram be sitting too close to the sear leg? I run into that issue with trigger stops if they're setup boarder line too tight.

[Patron God of Pirates]

Sweet! Version 1 and a single trigger.

In regard to the double trigger pull, could your ram be sitting too close to the sear leg? I run into that issue with trigger stops if they're setup boarder line too tight.

I'm going to call that the most likely culprit. It's also sitting fully horizontally which gives it the effect of being closer to the arm as well.

[Flatliner333]

No way! I love it like that. Reminds me of the Junon Cannon from Final Fantasy 7. I'd love a functional excuse to stick four more on the other open ports just like it. Where the hell are my air powered accessories!

Tis the season, someone needs to rig up a small snow globe on their sight rail and plum it in to the air ports.

[luke]

Tis the season, someone needs to rig up a small snow globe on their sight rail and plum it in to the air ports.

You know, if there was a market... (lol)

[yellowmitten]

Pneumatic Snow globe, I love it!! lol it would be a constant snow storm if I was playing!

[going_home]

someone finally did it!

on a side note... do something else with the reg, put a 90* elbow on it or something

Agreed.

Put the LPR on the asa or something.

[Runamok]

Just paint the lpr to look like a caterpillar and glue some antenna on and no one will notice it!

[Patron God of Pirates]

Agreed.

Put the LPR on the asa or something.

You guys are killin' me. My other pneumag is ASA mounted. Mounting on the accessory ports was the reason I wanted to use a classic RT.
