Burst mode?

[Woodsman]

[Cyco-Dude]

here is the emag manual. the burst modes are activated by a jumper you plug onto the board, and the bps is capped by what you set it at.

[PsychoJester]

I would like to see an close up picture of the jumper please

[Cyco-Dude]

this is the part.

[athomas]

I am assuming you have AGD firware version 1.37. You must install the mode jumper to activate burst mode. Once the mode jumper is installed, all features are enabled, including burst mode. If you select burst mode, the rate of fire is limited to 9bps.

If you install the later versions of firmware or the aftermarket Xmod, then many other modes are available. Xmod allows ramping as well.

[Woodsman]


[Woodsman]

[ATTACH=CONFIG]89783[/ATTACH]

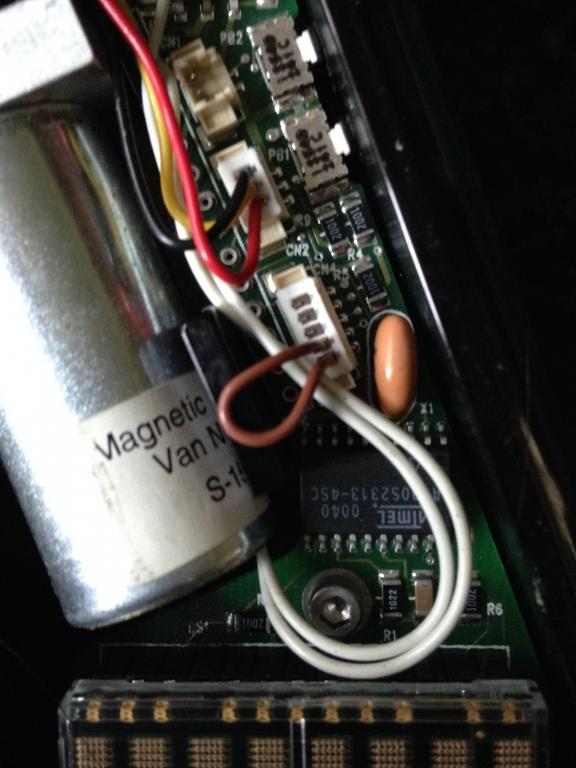

I'm guessing it's the little brown loop in the center of the frame?

[Woodsman]

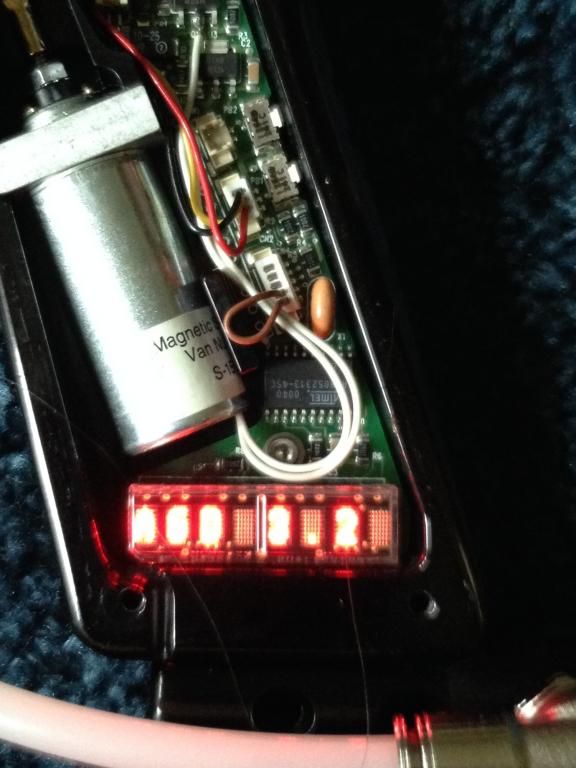

Sorry for the low resolution but the red pixels are murder on the lens of my phone! Anyway it says AGD 3.2IMG_8205.jpg

[Woodsman]

Burst-mode?

Hey guys, thanks for the quick response! I posted some pix of the internals and I hope you can see them..

[Cyco-Dude]

yes, that is the jumper.

[PsychoJester]

Thank you Woodsman

[athomas]

I don't think there are burst modes on version 3.2. It is only available on 1.37.

Version 3.2 does have shot buffering which makes it faster in semi mode than version 1.37.

[PsychoJester]

So there is no use for jumper if you have 3.2 mode?

[athomas]

I don't think the jumper does anything in version 3.2. It does have the jumper used as a tournament lock on version 4.2.

[Woodsman]

Ok, so my Xmag 3.2 doesn't have burst mode enabled. But it does have a code that reads "SHBF 6" which can be increased by increments of 2 all the way up to 100 then it resets back to 4. I'm guessing a higher setting equals a faster semi-auto cycle rate?
