AGD ULE Body C-Clip

[luke]

Can anyone tell me the wire size diameter of the ULE body C-Clip?

[cougar20th]

Should be 1/32 but I dont have one here to measure.

[Tunaman]

Yup. I am coming up with .031

[luke]

Thank you gentlemen

[mobsterboy]

Care to share with the rest of the class why you are inquiring?

[Tunaman]

Care to share with the rest of the class why you are inquiring?

I would venture to say that either he is sourcing the clips or making a groove for them...inquiring minds DO want to know.

[luke]

I'm working on new slug bodies, and I want to add a wire clip to hold the stainless spring cups in place. Mine will be a larger diameter than the AGD ones but the same wire size. Unfortunately I have never been able to source the AGD ones, I believe they are a proprietary part so I'll probably end up having to have them made.

[luke]

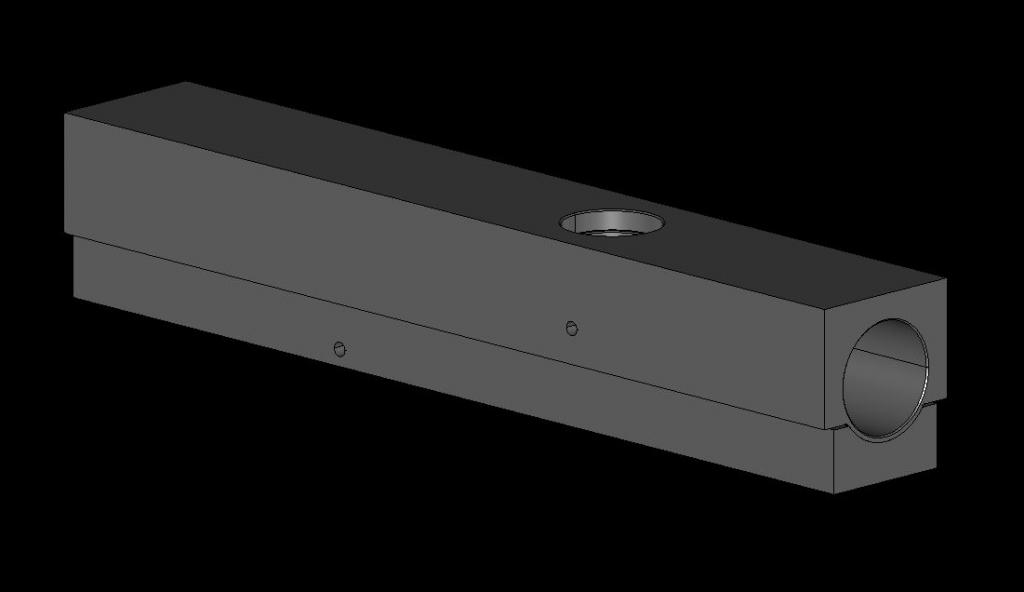

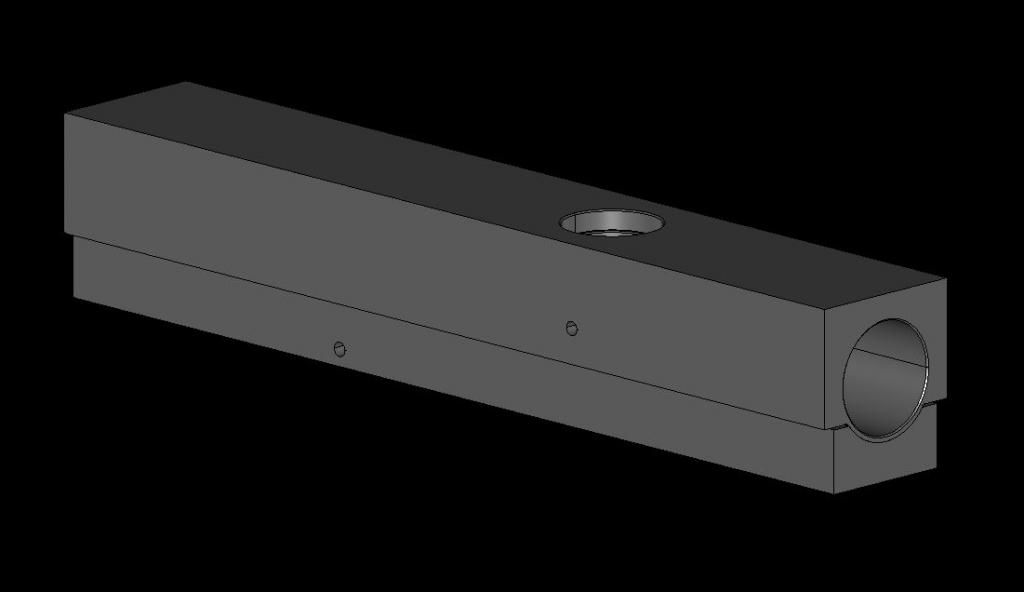

New Slug Bodies.JPG

[SummaryJudgement]

[ATTACH=CONFIG]100413[/ATTACH]

[luke]

Slug bodies will be made without a preorder

[luke]

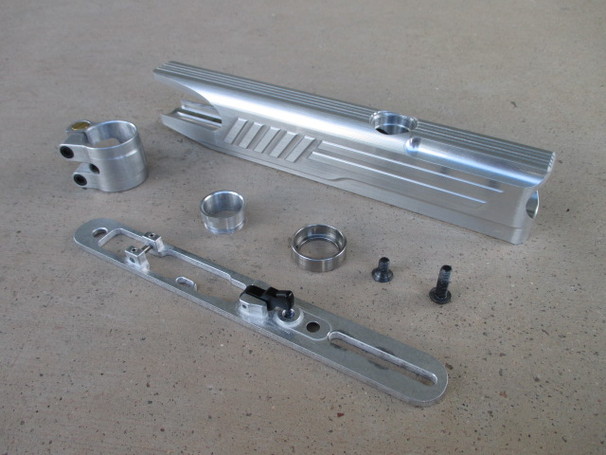

Slug Body and rail

New Slug Rail and Body.jpg

[alpha_q_up23]

Just curious, if you (Luke) or anyone knows, with aftermarket bodies/ule bodies was there any reason why the detent was never placed under the body and use like a small detent like a spyder or tippmann style detent?

[luke]

With aftermarket bodies/ule bodies was there any reason why the detent was never placed under the body and use like a small detent like a spyder or tippmann style detent?

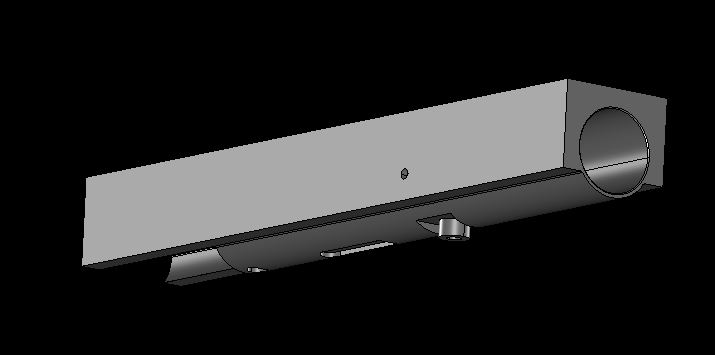

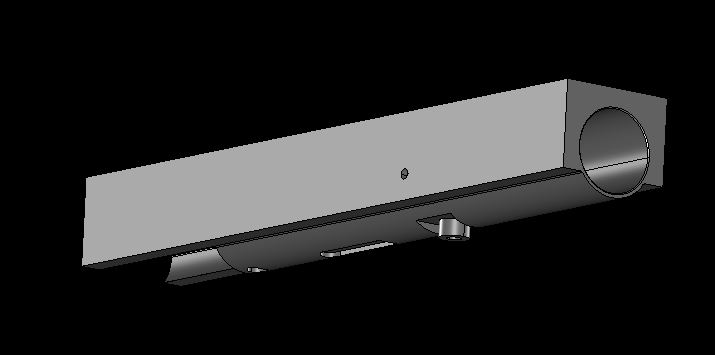

Yes there is a reason but I did pull it off with the Unibody I designed. The problem is the Detent needs to go where the front grip frame screw lives. I solved the problem by going to two front screws, one to attach the rail to the body and one to hold the grip frame to the rail.

[alpha_q_up23]

Ahhhh gotcha, never realized that the Deflators didn't have side detents

[luke]

I've got something like 50 of the Unibody Slugs just sitting, one day I'll get around to designing something around those. lol
