    #61
    Originally posted by going_home View Post
    Got my tracking # .

    Sooo who are you guys using for anodizing ?

    Satin black will be close enough for my dust black Xvalve.






    (who needs a preorder when things ship this fast !)
    I know, this didn't feel like much of a pre-order. We just paid and it's already in the mail. As for anodizing, I haven't decided yet, I was thinking caustic, but arc anodizing, stained works, annoworkz and precision color techniques all seem like good options as well based on their portfolio. If anyone has any strong recommendations or feedback I'd be interested.

    Sent from my SAMSUNG-SM-G935A using Tapatalk

    Comment

    • awo702
      Registered User

      • Aug 2015
      • 473

      #62
      Originally posted by going_home View Post

      Sooo who are you guys using for anodizing ?
      Caustic for me.



      Sent from my iPhone using Tapatalk

      Comment

      • going_home
        Hebrews 13:8

        • Dec 2004
        • 8343

        #63
        Last time I contacted FX he had moved and hadnt set up anodizing yet.

        But I contacted him and he is up and running, so if he will take the job I will be using him.

        Comment

        • mobsterboy
          Mr.StealYoDallara

          • Aug 2004
          • 2371

          #64
          Who did you end up using for your test run on anodizing, Luke? I think we are all eager to see how that played out and the start of you offering finished products instead of just raw.
          RAWR
          Dallara Den

          Comment

          • luke
            lukescustoms.com

            • Jan 2001
            • 8211

            #65
            The SS spring cup can be a hassle to install and remove if you just drop it in and try to move it into place. However there is a trick that makes it easy. I made an instillation tool to install and remove the cup but you can use your AGD valve for the same purpose. The tool I made also installs the clip (which wont work with the AGD valve) but a simple 1" dowel rod could be used in place of the valve.

            First I install the ss cup into the end of the body then get the clip started, make sure the open side of the clip faces the bottom so you have easy access it through the sear slot for removal.
            Once the parts are in place I hold the body vertical then slid the clip and cup into place. There is a distinctive 'click' when its installed.

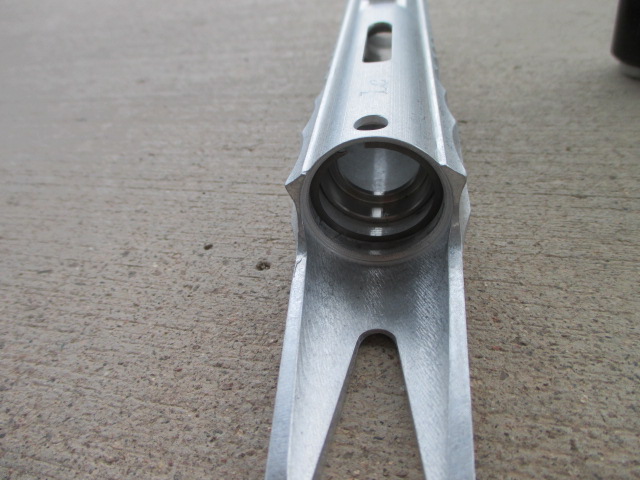

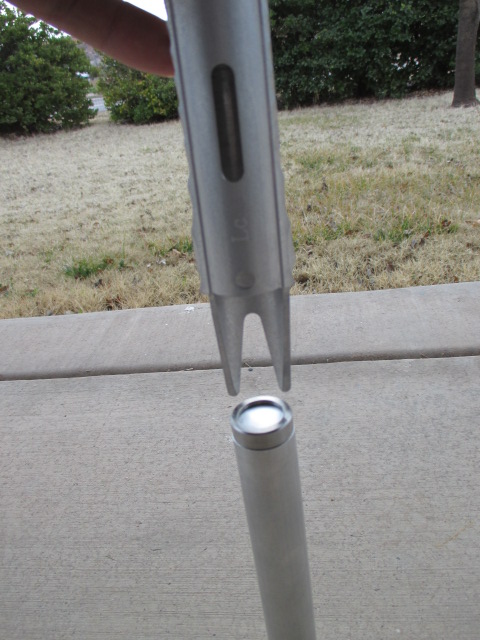

            ss cup install 3.JPG

            ss cup install 4.JPG


            To remove, just use a pick to get one end of the clip out of the groove and work the pick in a circular motion under the bottom edge until it's free (Just like the AGD round clip). Work it out of the body, then install the AGD valve, hold the body up vertical, lower the valve and the ss cup will slide out.

            Hope that makes sense. There is a small learning curve but it's real simple if you follow the procedure. If you need more info please let me know.

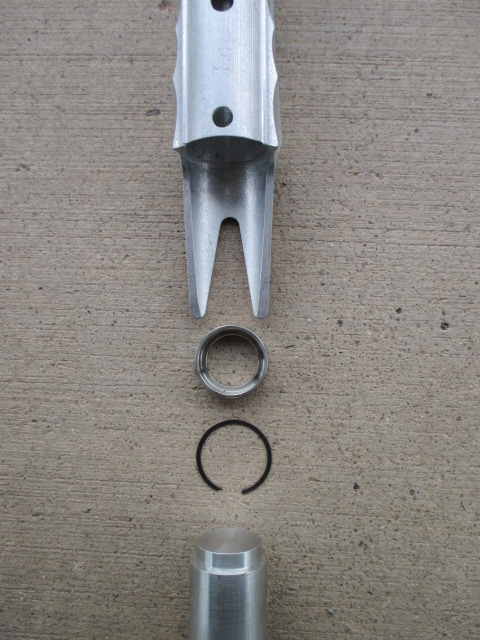

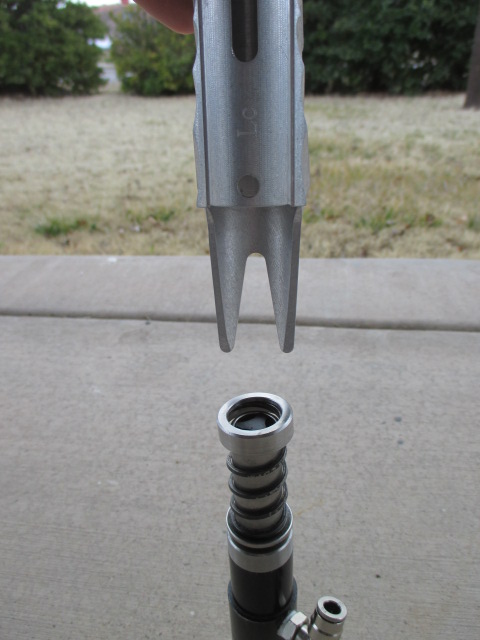

            ss cup install 1.JPG

            ss cup install 2.JPG

            Without the installition tool or 1" dowell pin to instal the clip follow instructions to install the SS cup into the bottom of the cavity, then just work the clip into place as you would on the AGD version, it takes a little longer but is doable.
            Last edited by luke; 02-18-2019, 10:10 AM.

            Comment

            • notoriousMAG
              Registered User
              • Aug 2002
              • 66

              #66
              Amazing turn around time! Super stoked and cant wait to see it on my Armada rail. Thanks!

              Comment

              • Apathetic_Chaos
                Registered User
                • Mar 2017
                • 229

                #67
                Originally posted by going_home View Post
                Got my tracking # .

                Sooo who are you guys using for anodizing ?

                Satin black will be close enough for my dust black Xvalve.






                (who needs a preorder when things ship this fast !)
                Im thinking a black on top of toxic green oil rub from caustic... we will have to see

                Sent from my SM-G960U using Tapatalk

                Comment

                • luke
                  lukescustoms.com

                  • Jan 2001
                  • 8211

                  #68
                  I'm stoked to see what you guys build..

                  Comment

                  • Gundam V
                    AGD The Only Way To Play
                    • Jul 2001
                    • 338

                    #69
                    I'm undecided if I should get an emag frame or keep it mechanical.... I got 2 anodizes in mind that I think would look badass.
                    Sent from my SAMSUNG-SM-G935A using Tapatalk
                    Last edited by Gundam V; 02-18-2019, 09:22 PM.

                    Comment

                    • Gundam V
                      AGD The Only Way To Play
                      • Jul 2001
                      • 338

                      #70
                      Luke, just got the Armada body and rail. Have to say, I'm glad I got in on this this time around. Once again pics don't do this combo justice.

                      Sent from my SAMSUNG-SM-G935A using Tapatalk

                      Comment

                      • luke
                        lukescustoms.com

                        • Jan 2001
                        • 8211

                        #71
                        Thank you sir.

                        Comment

                        • notoriousMAG
                          Registered User
                          • Aug 2002
                          • 66

                          #72

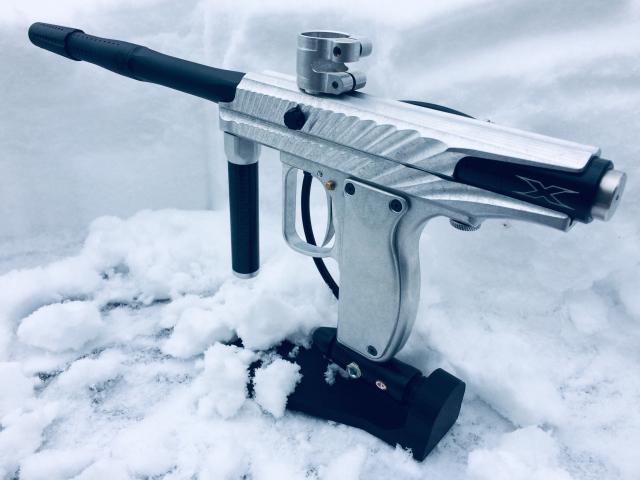

                          Cold as ice...
                          Attached Files

                          Comment

                          • Gundam V
                            AGD The Only Way To Play
                            • Jul 2001
                            • 338

                            #73
                            Look at you already have it set up, looking good. [emoji16]

                            Sent from my SAMSUNG-SM-G935A using Tapatalk

                            Comment

                            • going_home
                              Hebrews 13:8

                              • Dec 2004
                              • 8343

                              #74
                              Got mine today.

                              Did I miss info on the proprietary sear pin ?

                              I didnt get the pin or allen screws to hold it in.


                              Comment

                              • luke
                                lukescustoms.com

                                • Jan 2001
                                • 8211

                                #75
                                I guess I missed those, I'll get those out to you. Sorry about that.
