New Proto Slug Body PICS!!!!

[joeyjoe367]

whoops, forgot to attatch IMG>...

[FrAuStY]

Here's a try at 2 AM, ....must have sleep...looks terrible.. will give another shot tomorrow! But... it's setup for warp left! WOOT!

[pito189]

Originally posted by AutoMaggot
OK, this sucks really really bad... but ya get the ideas!

I like this one a lot. I like the incorporated snatch grip. I was thinking of doing that when I had my E-Mag milled. Very nice good job AutoMaggot.

[Schnitzel]

I know this doesn't have anything to do with design suggestions, but I gotta present it.

With the ability to switch bodies with this new design, and the fact that it's a cocker threaded barrel, I see one issue that may arise when "upgrading" to the new body. What about the twist-lock pin? That's one thing that will have to be acknowledged when you put this out, Tom.

[Smoken]

the pin is removeable.

[FrAuStY]

You can remove the twist-lock pin... you just have to gently tap it up from the bottom using a centerpunch. NBD.

[thei3ug]

How soon can I get one to begin milling?

[Manuel_FZR]

[Darkling]

Well, heres my try at this. Sorry about the crappy quality. I can't find my copy of photoshop in the mess that is my room, so I had to resort to paint....groan....

[Coaster]

nobody seems to be talking about the feed tube, so i will say something. I really don't like that kind of feed tube, i think it would look nicer with one that looks like the GZ's one.. .kinda just like a cylinder no conical at all and doesn't go up that high.

[pito189]

Originally posted by Coaster
nobody seems to be talking about the feed tube, so i will say something. I really don't like that kind of feed tube, i think it would look nicer with one that looks like the GZ's one.. .kinda just like a cylinder no conical at all and doesn't go up that high.

I agree that feed tube has to go.


This would work minus the homosexual colors.

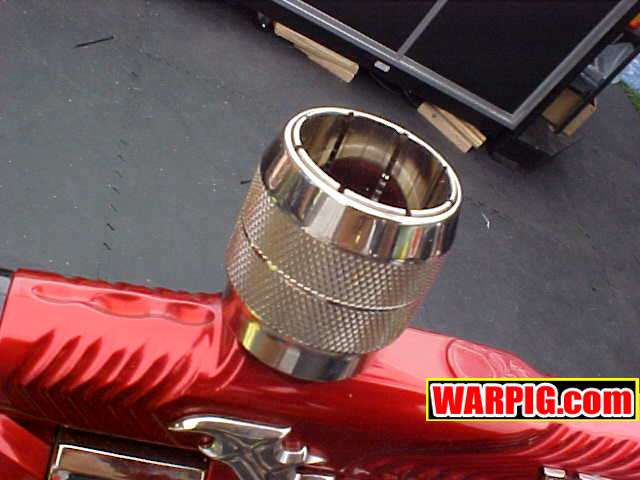

Now that right there would look very good on that body.:)

[SlartyBartFast]

The discussion has changed since my last post but here goes:


Tom,
To get rid of the rail, how about the following idea: I thought a little mopre about my question concerning spacers and thought why not make a two part slug?

The upper part can be universal, the lower part can be AM, RT, RTPro, EMag specific. The two parts could then be brazed together to form one slug. This would keep your costs lower than having seperate slugs for each model, but would also allow for much more possibilities for customisation.

Also get rid of the feed tube. Customizers should be left to drill the feed where they desire, just mark the centerline on the slug.

Still think extreme bodies made larger and squarer with the absolute minimum on drilling/machining are a much better idea for customisers though.

[SI|ENT|3O|3]

i really like fraustie's idea. a choosable warp left body option would be really cool. i would like that in black o yeah.
-sebastian

[RetroEclipseMan]

I like the way this is going. I think that these bodies need to released looking like the stock extreme bodies where the valve is covered by the body leaving lots of meat to carve off so if people want part of the valve covered then the can have that and if they don't want it covered then they can have it milled off. I still like the design that Dave came up with a few months ago

There's a few things that I would like to change but I gotta wait till I'm in school to scan my drawing into the computer. This has already been said but why not say it again so Tom knows more people want it. The feed should be angel threaded so that we can get the low rise gated feed or better yet if there is some way that the no rise feeds like on the sfl's can be taken off that would be cool to. Again i'm not telling you to do this Tom since you're the mastermind behind this and whatever is decided will be the best, just making a request. Thanks.

Brandon

[magman007]

ok guys, the feed neck is to show that it is angel threaded, meaning any angel feed neck can be thrown on..... Underestand??
