Sydarm revisited - whole new direction

[bowcycle]

I acquired a sydarm in a recent trade and wanted to do something a little different.
You have all seen Reeb's pistola mags. He gave me the idea for mounting an ASA to the rail and here's the result-





I drilled and tapped the VASA so that it could sit against the frame and rounded out the top of the ASA to account for how the benchy widens at the rail. I then put a benchy frame and CCI bucket changer on her (more trades) and think she's look'n pretty hot.

The rail on the grip gives a few options for HPA-









I'll have some gloss black ccm fittings on the way soon to get those hoses right up against the marker. Then she'll really pop and still be able to fit in a holster.

Also thinking of getting a cocker-thread adapter and finding a freak back with super short tip to lengthen the barrel 1-1.5".

[need4reebs]

haha…it wasn't my idea eh?

how man shots per 12gr are ya getting?

wheres ur lever changer???

[bowcycle]

Reebs, I gave you credit from the start.

I can't use anything thicker than the bucket changer because then it couldn't screw into the asa that's under the rail. So the lever changer is out. A dropout changer is a possibility, but then it would be longer than the rest of the marker.

[bowcycle]

rocked this with the 13ci tank for a while this weekend. I definitely need to get better at reloading, but it took people by surprise to have a pistol charging at them and it points really well.
I am very pleased with this marker and can't wait to get my longer barrel and get it cut down. The bucket changer and paint tube are flush with one another. I think I'll cut the barrel 1" longer.

More pics soon.

[Runamok]

How are you going to put a pump kit on it?CIMG3121.jpg

[bowcycle]

How are you going to put a pump kit on it?

really like that mounting board. I have sold off all my pump mag stuff and now only do cockers for pumps (just the way I started).
What is the metal on the bottom of the frame of your mag?

[zulubravo44]

It's looking great, and glad to hear you're pleased with how it plays. Reloading is a b**** though.

I checked, and that taso barrel I have isn't a center feed. Sorry about that.

[bowcycle]

I checked, and that taso barrel I have isn't a center feed. Sorry about that.

I have a barrel on the way. It's a little long, but has the dual detents and I'll cut it down and polish the end. It should come out really well.
Should have that all done and pics up sometime next week.

[Runamok]

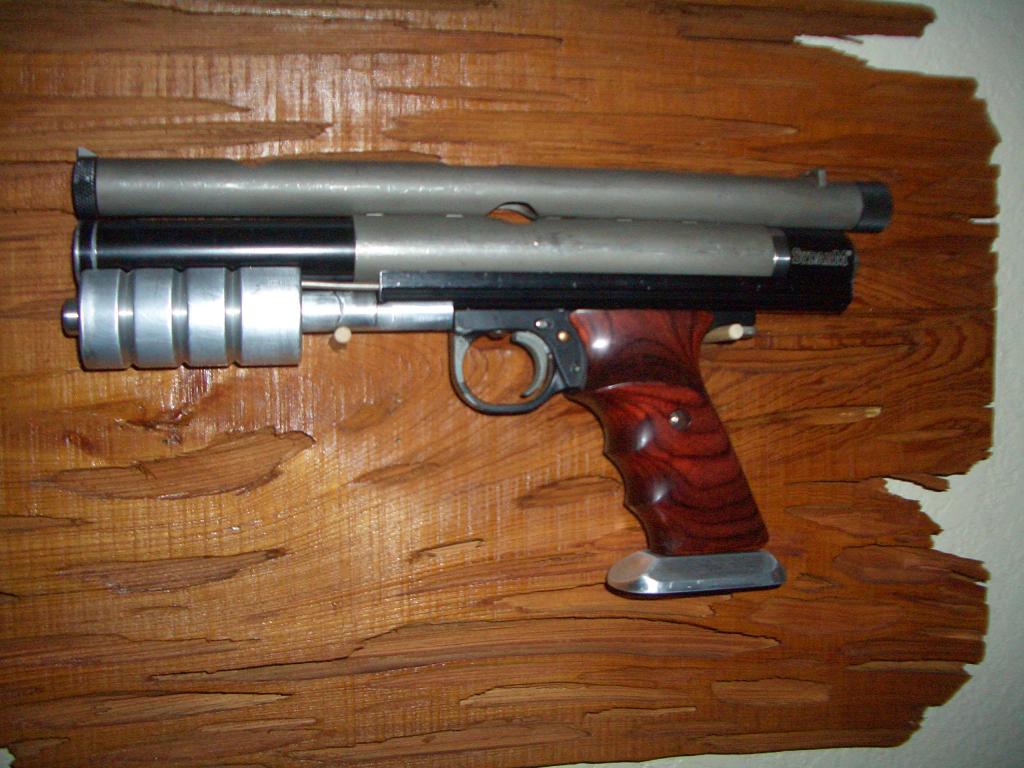

I made a "target" type base pad, after unsuccessful attempts to find any affordable target pistol grips. And my wall mount board is wormy cypress. Makes for a beautiful home for the Sydarm.

[bowcycle]

Reloading the Sydarm on the fly really is a pain. and you either have to cut down your tubes to 8rds or only put 8 in your 10rd tubes.

So, I'm building an attempt to replace it. I'm trying to get sight rails to put on the back to keep a consistent sight line with the tube.
This is my rough, dremel cut. I'll get it to my local machinist this week and get everything cut right.



I also think I want to get a reverse minimag valve.

[bowcycle]

Just so you know, this is now my favorite marker ever.







I really wanted to like the spring feed going forward, but it just didn't look nor feel as good as coming to the back.
well that meant that I couldn't put a sight rail on there, so what am I to do? epoxy a ghost sight to the spring feed!
I drilled a small indention (not all the way through) in the front of the spring feed so the pin on the sight could sit down into it, shaved a tiny amount off the dovetails on the sight so it would sit down flush on the feed, and epoxy'd it in place.

I also rounded the bottom of the spring feed so it would sit further down onto the marker body. Then I took the marker body to my machinist and had him shave down the feedneck until the spring feed would sit all the way down on it. Finally, he cut down the front of the barrel a little more and drilled out the SP emblems so I can put an allen wrench through there to get the front on and off.

I deburred everything and smoothed out the cuts on the barrel so it won't mess with paint.

Now, I just need a reverse valve and maybe one of Doc's freak fronts.

[nucks]

i might be willing to let go of a spiral wwa freak tip

[OPBN]

I hadn't heard that Doc was making freak fronts. Any link? I won't bogart the WWA unless you're passing.

[bowcycle]

I hadn't heard that Doc was making freak fronts. Any link? I won't bogart the WWA unless you're passing.

I already grabbed the WWA. Money sent, nucks. It's MINE! jk.

Here's his M4 tip and here's his phase tip. They're both sold out at the moment, but the phase only sold out in the last couple of weeks. Not a bad deal at $25. But since he only does limited runs, I'm sure they're a little more than that second-hand.

[nucks]

enjoy
