    Dissemble CP 2K8 Direct Mount for anodizing

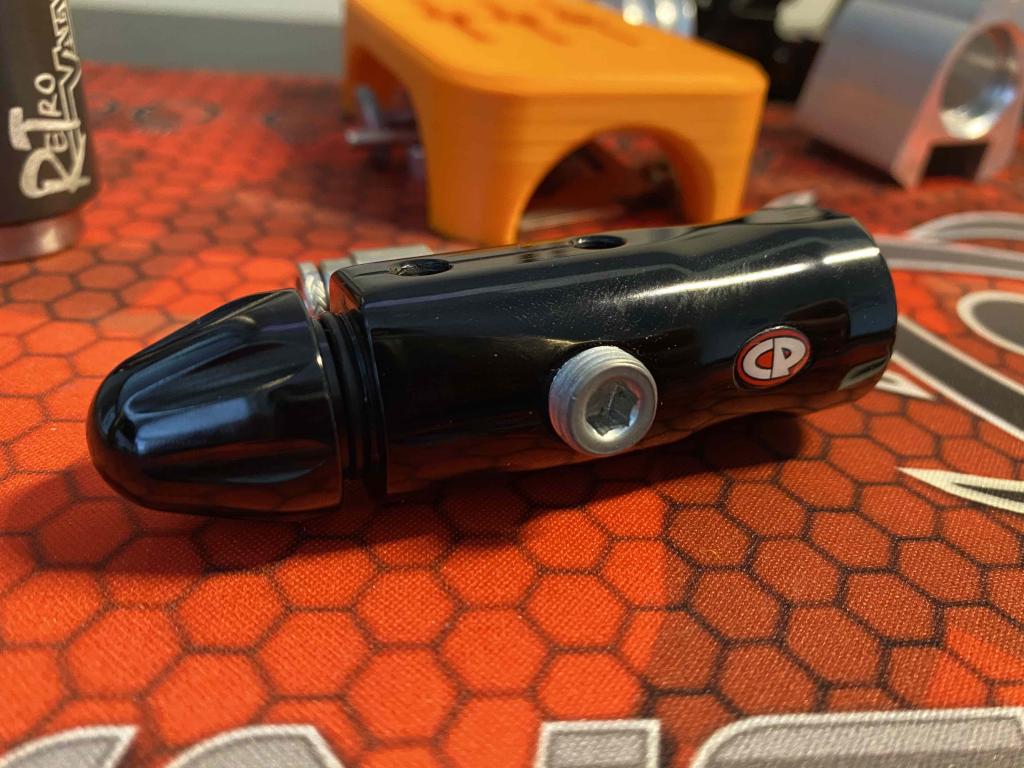

    Hey, I was wondering if there were any tips to disassemble a CP direct mount.

    Any tips/tricks out there?



    Sent from my iPhone using Tapatalk
    Tags: None
    • captian pinky
      Bearded Works

      • Oct 2004
      • 2755
      #2
      Pull the brass piece out of the back with needle nose pliers. Hit it thread side on a piece of wood everything should fall out. Front knob is loctited on the brass screw. Heat up the knob and it should smoke breaking the loctite. Then grab ahold of it with something and turn the Screw in the asa with an Allen key.


      Sent from my iPhone using Tapatalk

        Comment

        • rawbutter
          Registered User
          • Feb 2007
          • 1463
          #3
          Someone sent me one of these to use on a project, and I'm really surprised how hard it is to turn. Is that normal? The rail-mounted CP ASAs are so easy to turn. This one feels stuck. Not sure if that's normal or if I should take it apart to try and fix it.

            Comment

            • knownothingmags
              RKM 3D Designs

              • Apr 2010
              • 4810
              #4
              Originally posted by Bunny View Post
              Hey, I was wondering if there were any tips to disassemble a CP direct mount.

              Any tips/tricks out there?

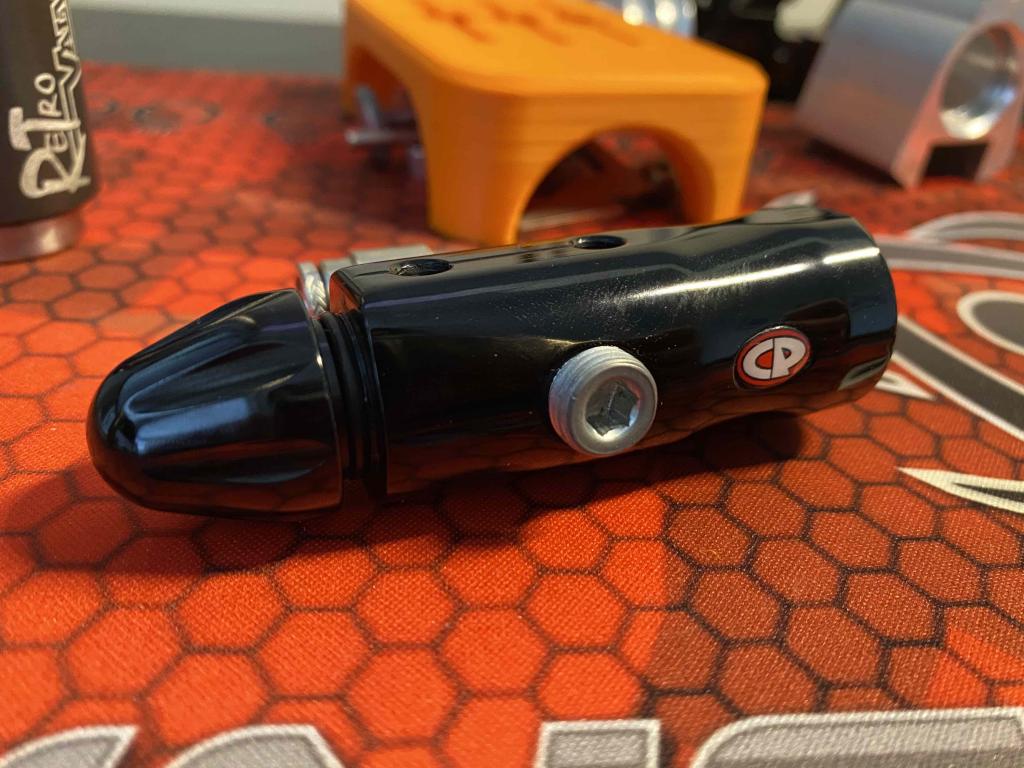

              [ATTACH]101565[/ATTACH]


              Sent from my iPhone using Tapatalk
              whoa where did you get that plastic jig behind it?
              logoRKM 3D Designs

                Comment

                • captian pinky
                  Bearded Works

                  • Oct 2004
                  • 2755
                  #5
                  What is the plastic jig for?

                  Bunny is sending it my way for disassembly btw.


                  Sent from my iPhone using Tapatalk

                    Comment

                    • Nobody
                      Nobody's Perfect
                      • Oct 2001
                      • 3384
                      #6
                      Originally posted by rawbutter View Post
                      Someone sent me one of these to use on a project, and I'm really surprised how hard it is to turn. Is that normal? The rail-mounted CP ASAs are so easy to turn. This one feels stuck. Not sure if that's normal or if I should take it apart to try and fix it.
                      More than likely there is some gunk in the threads. If it has been taken apart, it could also be put together poorly, the nut and/or screw be misaligned

                        Comment

                        • Bunny
                          AO Archivist

                          • Mar 2002
                          • 3453
                          #7
                          Just got everything back from Bearded Works. Everything came out looking great. I probably would have create some idiot marks somewhere on the thing.

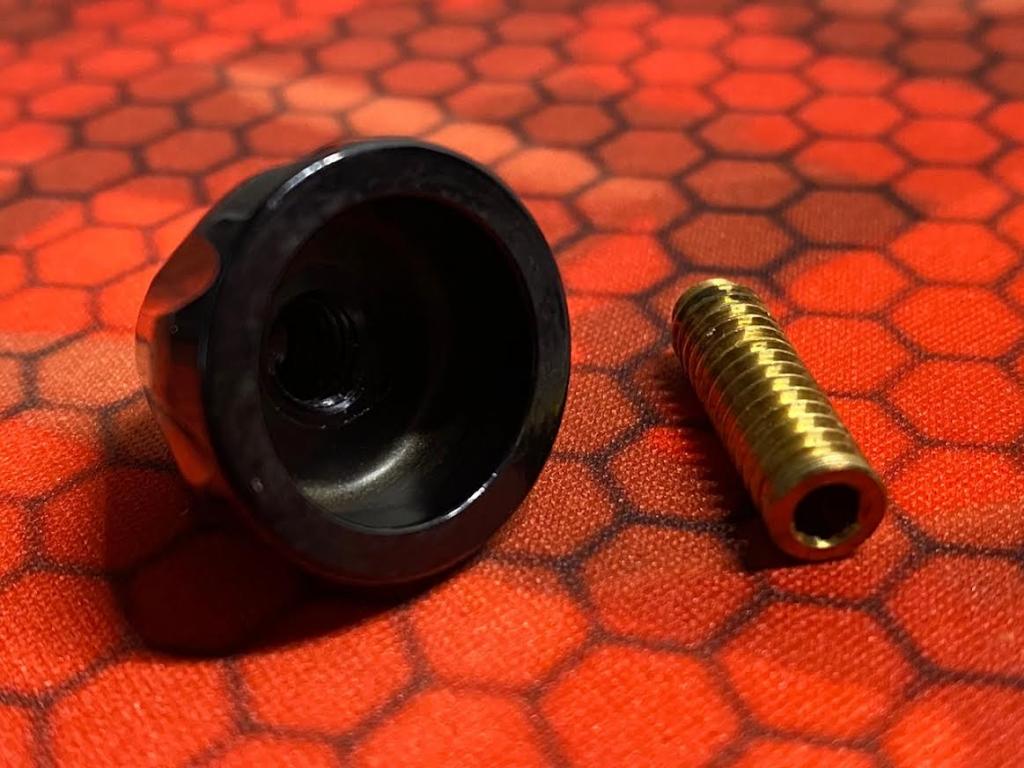

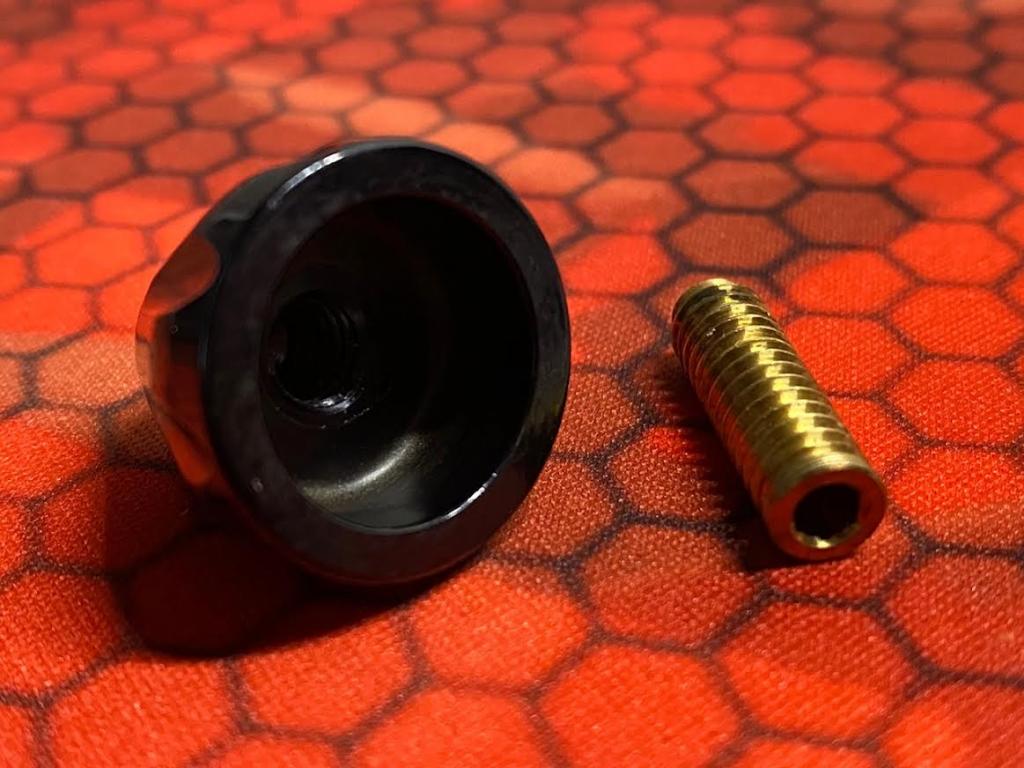

                          I just wanted to add this picture incase anyone else needs it... Follow captian pinky steps above


                          P.S The orange this is for a super secret project i'm working on. There are a few other ones floating around. Not sure if anyone has completed one or not.

                            Comment

                            • captian pinky
                              Bearded Works

                              • Oct 2004
                              • 2755
                              #8
                              Glad to hear! Looking forward to project reveals.


                              Sent from my iPhone using Tapatalk

                                Comment
