Awesome, best single trigger frame available now! I plan to use the twist lock setup, should be easy to drill through since you pre-drilled it, right?
-
-
Yes sir you can, if you look close at the bottom picture you can see the "spot" location.Originally posted by Zone Drifter View Post
Comment
-

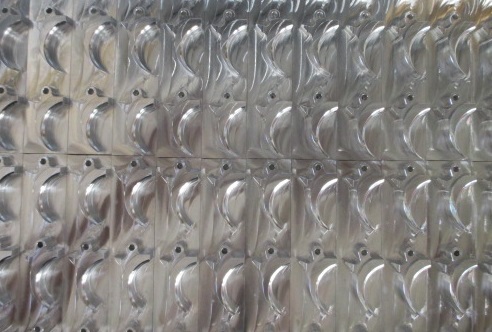

Trigger production is underway on both double and singles. I'm guessing I'll finish up the CHL project this week. Armada bodies and rails will fall right in line after the triggers are done, those will finish up fast. Both double and single frames have shipped for customers that are not buying Armada's and various rails (and those getting anodized frames.)

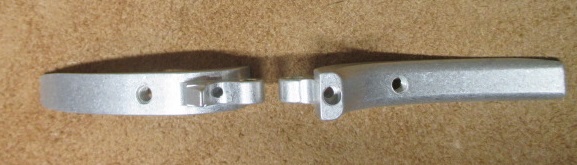

P1 Single Triggers.JPGComment
-
Ya know I haven't played a game all of 2020 but getting your custom parts and playing lego with my automags is my favorite workbench hobby.
Edit: Just got home to find mine waiting for me! This trigger frame is top quality, I'm heavily thinking of ordering another while I can...Last edited by Zone Drifter; 01-06-2021, 04:06 PM.Comment
-
I haven't used a semi auto for at least 5 years but I bought a frame. One day I'm hoping that Luke will finally make a pump kit. Until then the frame will sit on a mag and look pretty until I get bored of playing pump and decide to use a semi auto.Originally posted by Zone Drifter View PostYa know I haven't played a game all of 2020 but getting your custom parts and playing lego with my automags is my favorite workbench hobby.The user formally known as Lancecst.Comment
-
I hear ya, but I'm heavily invested in undisclosed projects at the moment. If I was looking for a project this would fit the bill but I have other stuff in the Que at the moment. Dont give up on it though! If it's any consolation I do work 7 days a week, problem is I'm a one man band and I'm getting older by the week!Originally posted by BLachance75 View Post
Comment
-
You getting older....bahComment
-
The CHL project is done!
All orders have already shipped except for those waiting for rails and or bodies and anodizing.
I'm starting rails tomorrow.
Thank you gentlemen.
Comment
-
Thanks again Luke!Comment
-
Don’t worry I’ll keep asking.Originally posted by luke View PostI hear ya, but I'm heavily invested in undisclosed projects at the moment. If I was looking for a project this would fit the bill but I have other stuff in the Que at the moment. Dont give up on it though! If it's any consolation I do work 7 days a week, problem is I'm a one man band and I'm getting older by the week!
I would like to amend my request though. I want a pump milled Deflator body with a matching pump kit. Seems like a simple easy project you can hammer out in no time.The user formally known as Lancecst.Comment
-
I dont think I can pump mill those due to how that body is engineered. The area of the rail that would get the pump slot ramp is hallow on these bodies.Comment
-
-

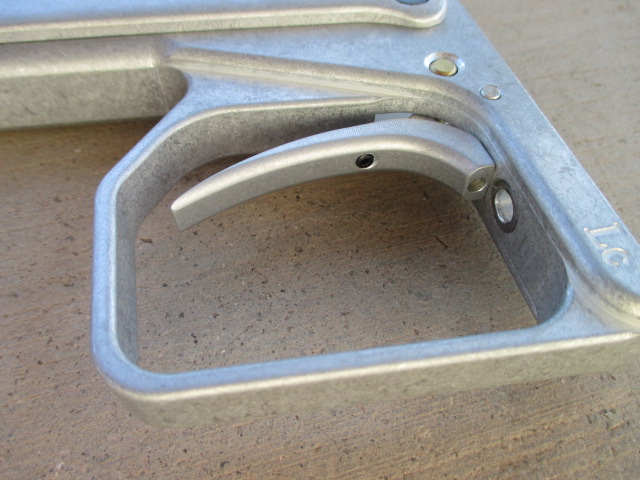

Here's the new Katana 2 trigger.
Changes are very subtle but I'm pleased with the finished design. You probably wont notice the changes unless you compare to previous versions.
The K2 does not incorporate the top adjuster screw and uses a magnet inserted into the end of the trigger with the north/south poles on the sides rather than the ends. The other magnet mounts in the top of the grip frame as usual.
All Lc frames will now ship with return magnets for mechanical setups.
Extra forward travel was removed from the design leaving small gap at the factory sear rod setting. Small minor sear rod adjustments may be necessary depending on your setup.
The idea was to design the trigger so there wasn't a need for the top screw so that the safety would work but still have a magnetic trigger return.
This is an Intelli based trigger design so they work in your AGD grip frames but AGD frames are not designed for trigger magnet returns so if you want that feature you would have to modify the frame for the top magnet.

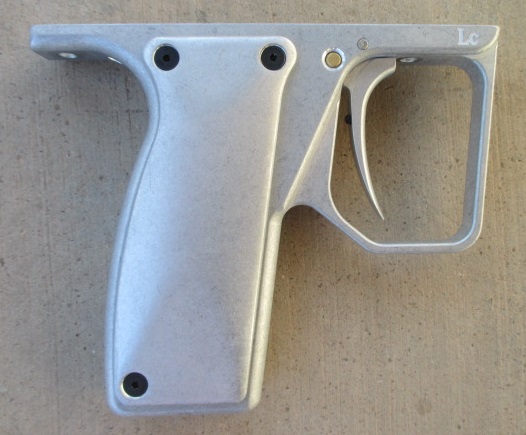

CHL Katana 2 Raw.JPG
CHL Katana To Magnet Raw.JPG
CHL Top Raw.JPG

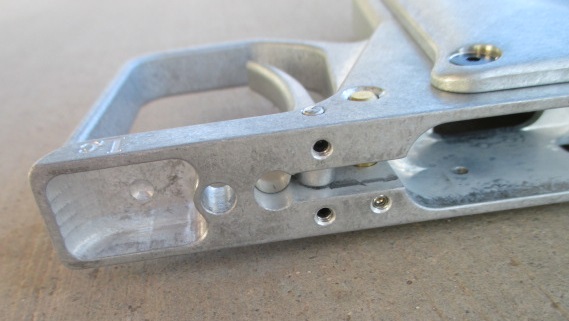

I also added a small hole behind the trigger magnet so that a small wire could be used to push the magnet out. This is not typically needed, but if you do it's a handy feature.
Magnet removal hole.JPGComment
-
Nice.
Comment
-
Comment
