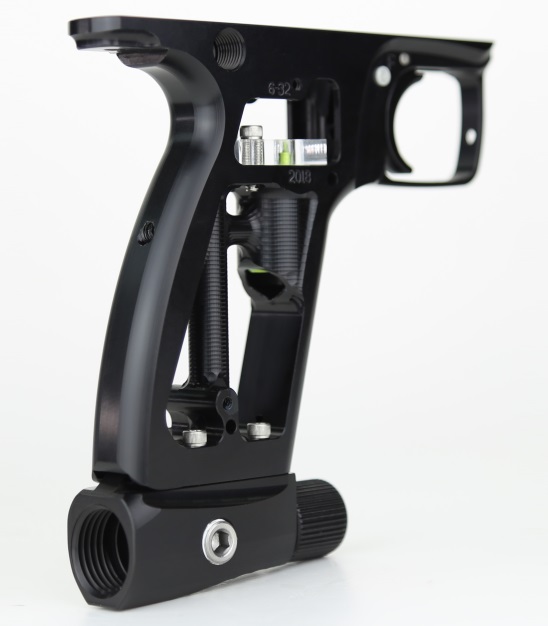

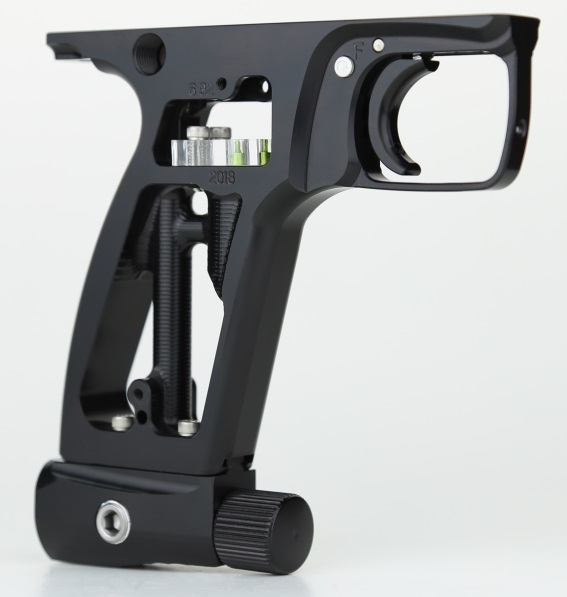

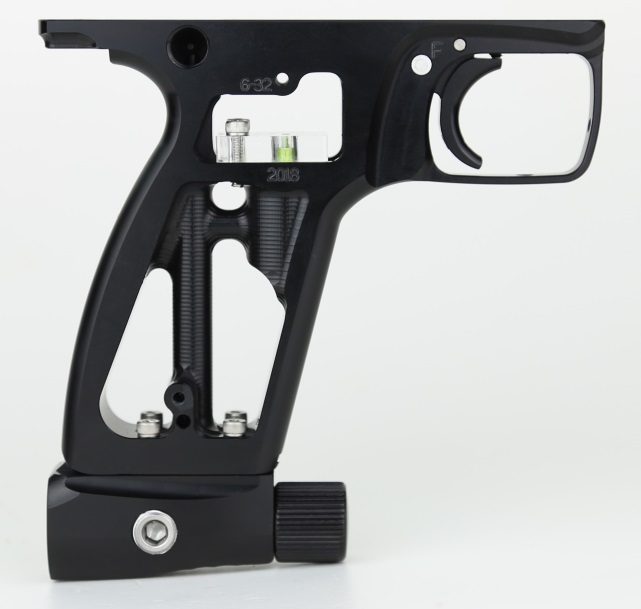

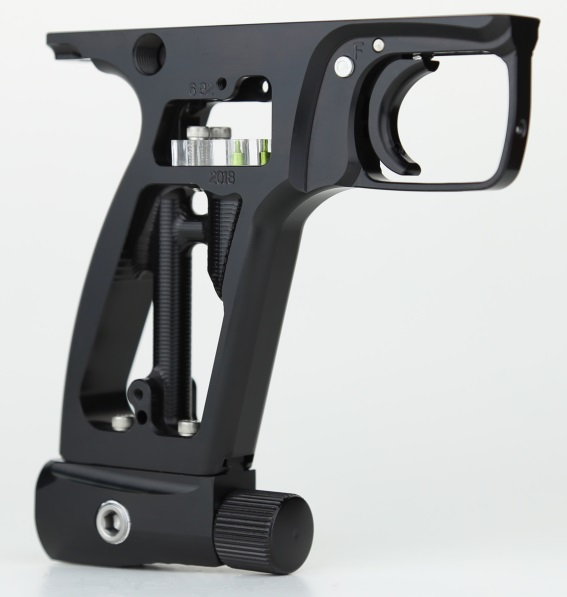

Item details: Nummech's N-Mag grip frames are built using a new approach to the typical Automag frame layout. This new design combines proven ergonomics of typical 72-degree Nummech grips with an integrated frame-routed air supply that removes most of the marker's external hoses. Only a short hose is required to plumb the valve's air input to the grip frame.
Internally, N-Mag frames utilize common mechanical Automag parts such as triggers, sears, and safety buttons. The N-Mag frame is compatible with mechanical Automag rail/valve combinations such as the Minimag, Tac-One, RT Pro, RT ULE bodies, and others.
A new purging ASA valve is required to operate the frame-routed air supply, which is included with the basic frame kit. The frame has an integrated T-rail bottomline and #10-32 bolt-on ASA screw holes which can be used with external hoses if you wish to use a different ASA housing.
N-Mag grip frames are internally milled for an optional pneumatic trigger valve kit which can be purchased at a later date. The basic frame upgrade kit includes plug hardware to seal the internal passages.
Features:
- Drop-in upgrade that requires no permanent marker modifications
- Grip frame palm hump
- Compatible with standard ".45 style" grip panels and wraps
- Single trigger with bronze pivot bushing (included)
- Integrated air port drilled vertically through the grip, leading to a 1/8"-NPT air line connection
- New low-profile safety button (included)
- Trigger pin with lock screw (included)
- Integrated trigger pre-travel adjustment screw (included)
- Partially-concealed frame screw heads
- (Optional) compatible with T-slot or bolt-on #10-32 ASA mounting systems
- Gas-through tank shutoff ASA adapter with knurled knob
- Machined from solid billet aluminum 7075-T651 and plated with type-2 anodizing.
- Lifetime limited warranty included
Included in the package:
- N-Mag single trigger grip frame
- Safety button with spring-ball hardware
- Internal blocker that can be removed if upgrading to pneumag trigger valve
- Nummech single trigger
- Tank shutoff ASA with knob
- New mounting hardware and grip panel screws
- Replacement ASA o-rings
- Installation instructions
...
