  • Chikahiro
    Registered User
    • Apr 2015
    • 40
    #76
    Hmm... a little sticky going on. The o-ring sorta sticks out the side, so I'm wondering if I've got too large an o-ring by accident.

      Comment

      • athomas
        Of course it works-its AGD
        • Jan 2002
        • 8039
        #77
        Which oring are you talking about?
        Except for the Automag in front, its usually the man behind the equipment that counts.

          Comment

          • Chikahiro
            Registered User
            • Apr 2015
            • 40
            #78
            The one between the power tube tip and the valve assembly.

              Comment

              • athomas
                Of course it works-its AGD
                • Jan 2002
                • 8039
                #79
                When the brass powertube tip is screwed onto the stainless powertube, there should not be any oring showing. The brass tip should sit flush against the end of the powertube. That oring is only designed to provide tension to keep the powertube tip from vibrating loose.
                Except for the Automag in front, its usually the man behind the equipment that counts.

                  Comment

                  • Chikahiro
                    Registered User
                    • Apr 2015
                    • 40
                    #80
                    Originally posted by athomas
                    When the brass powertube tip is screwed onto the stainless powertube, there should not be any oring showing. The brass tip should sit flush against the end of the powertube. That oring is only designed to provide tension to keep the powertube tip from vibrating loose.
                    http://1drv.ms/1PBxBfU


                    So I read this wrong, then? D'oh

                      Comment

                      • athomas
                        Of course it works-its AGD
                        • Jan 2002
                        • 8039
                        #81

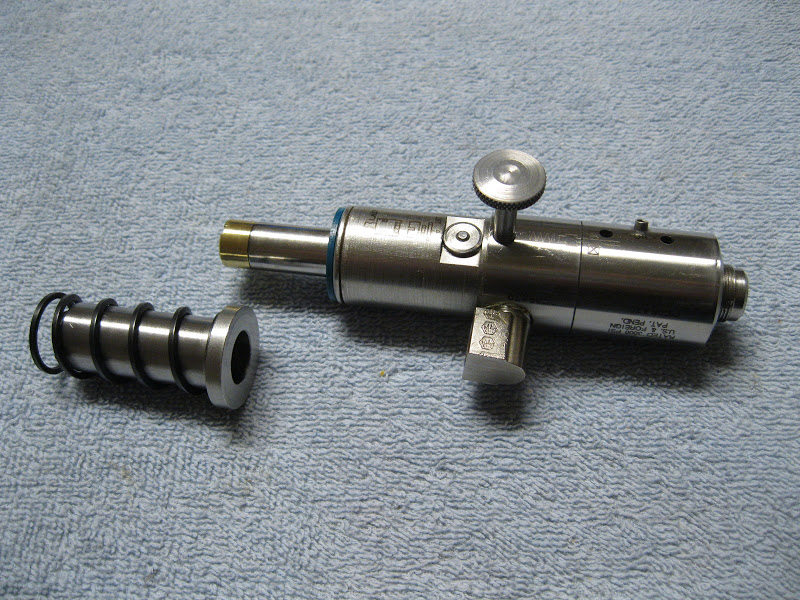

                        This is what your valve should look like when assembled.


                        If you have that oring acting as a spacer, it will throw the whole spacer distance off for your setup. You will definately get bolt stick.
                        Last edited by athomas; 05-22-2015, 02:13 PM.
                        Except for the Automag in front, its usually the man behind the equipment that counts.

                          Comment

                          • Chikahiro
                            Registered User
                            • Apr 2015
                            • 40
                            #82
                            Okay, got it!

                            First off, miracle of miracles, my remote line plug is leaking, so I'm wondering what I did this time >_<

                            That said, screwing straight in fixed that. Air out the back, but pulling back on the velocity worked. Some shots had dropoff, others were fine, no bolt stick, but sometimes balls wouldn't feed even though it looked like there were in there. I still hear a *slight* bit of barrel leak as well. *le sigh*

                            Hopefully I'll be able to go to the field on Sunday and work more there with a steady stream of HPA. But, its getting better!

                            Trying to put a stock ASA on my GOG eNMEy as I didn't like the aftermarket on/off the original owner put on (refurb field rental), but don't have the screws to do so with. So... eek, guess its up to me and my Spyder if I get to play on Monday. Or, I can see if I can borrow my buddy's Crossover.

                            This has been tremendously satisfying, though :)

                              Comment
