Hybrid RTP Rails

[Gundam V]

I'm down.

Sent from my SAMSUNG-SM-G935A using Tapatalk

[Nobody]

Hey, were sorta collaborating here so whats your problem? What, you prefer design by committee? You know what that results in, dont you? Do you like driving a Camry? Sometimes its a vision of something different by just one or two that paves the way... thats how you get GT40's.

Committee? Everything comes froma committee, whether it is 1 person or a 100 people. Even the GT40 had a few people doing the design. Even John Browning designed his guns, yet there were engineers that made the design work in the manufacturing sense.

Youve seen other guns get windowed in more vulnerable areas like the hammer and spring (cockers). A mag isnt going to cry (like you) if it gets shot in the sear, lol. ;p. Its one of those areas you get dirt in anyways and with that big window now you can just hose it out easier.

Windowing is fine, but when you do things in a senstive area, then you are asking for trouble. That is not anything you want to do because you are inviting trouble. And in 20+ years of paintball, i have never been shot in the sear with a mag. Paint has dripped in or gone up the frame, but have fun. Cry no, i will just laugh at you.

[Nobody]

How long before we can get a mag version of this??

Sent from my SM-G960U using Tapatalk

Not with Luke, he doesn't do compound corners...

[luke]

So it looks like I only sold 3 of these rails originally and they were most likely made from factory rails.
I did update the CAD for pump milling (now or later)

[Patron God of Pirates]

First off, I think this is awesome. I'll probably pick up an Ultra mini when buying season starts again. Let me throw this idea back in the ring. Combine the rail and frame. Uni-frame.

[luke]

First off, I think this is awesome. I'll probably pick up an Ultra mini when buying season starts again. Let me throw this idea back in the ring. Combine the rail and frame. Uni-frame.

Were you the guy that approached me years ago with the cad files for these frames with and without the asa's? I'm not looking for files, I just dont remember who it was or who first posed the idea.

These have always been interesting and now I have enough experience that they would be doable. But there's many limiting factors about the design, enough that it may be unattractive to many customers. I highly doubt a T-Rex and LPR would be possible, limiting these to mechanical setups. Pumps may be an issue depending on the design. I don't know if a run could be done in small numbers of 25-30 with all the different challenges in doing a part like this. All that said it's just thinking out loud, besides any of that I'm not sure where I would fit it in with all the projects in the current lineup. Honesty I'm drowning in stuff that needs to get done...

[luke]

Rails will go up for sale a little later today, I'm working on it now.
The little 5.9" rails are strictly a limited run, get-em before their gone!
Loose plans are to take orders for about a week, then knock them out, the wait will be minimal.
At this point I dont know which rails will be standard stock items, these designs are just to get the project off the ground.
Thank you gentlemen, I appreciate your support.

[luke]

We're go for launch gentlemen, visit the Dealer forum or my website for details. Thanks.

[Patron God of Pirates]

Were you the guy that approached me years ago with the cad files for these frames with and without the asa's? I'm not looking for files, I just dont remember who it was or who first posed the idea.

These have always been interesting and now I have enough experience that they would be doable. But there's many limiting factors about the design, enough that it may be unattractive to many customers. I highly doubt a T-Rex and LPR would be possible, limiting these to mechanical setups. Pumps may be an issue depending on the design. I don't know if a run could be done in small numbers of 25-30 with all the different challenges in doing a part like this. All that said it's just thinking out loud, besides any of that I'm not sure where I would fit it in with all the projects in the current lineup. Honesty I'm drowning in stuff that needs to get done...

I've brought it up before, but I've never had a CAD for it. Not even my idea. Who was it that put the sear pin inside a cocker hinge frame? It was a truely 'micro' mag.

[Apathetic_Chaos]

We're go for launch gentlemen, visit the Dealer forum or my website for details. Thanks.

I have to wait a week or two before picking one up, car needs new tires this week, but I will definitely order ASAP.

Sent from my SM-G960U using Tapatalk

[JimBobFett]

I've brought it up before, but I've never had a CAD for it. Not even my idea. Who was it that put the sear pin inside a cocker hinge frame? It was a truely 'micro' mag.

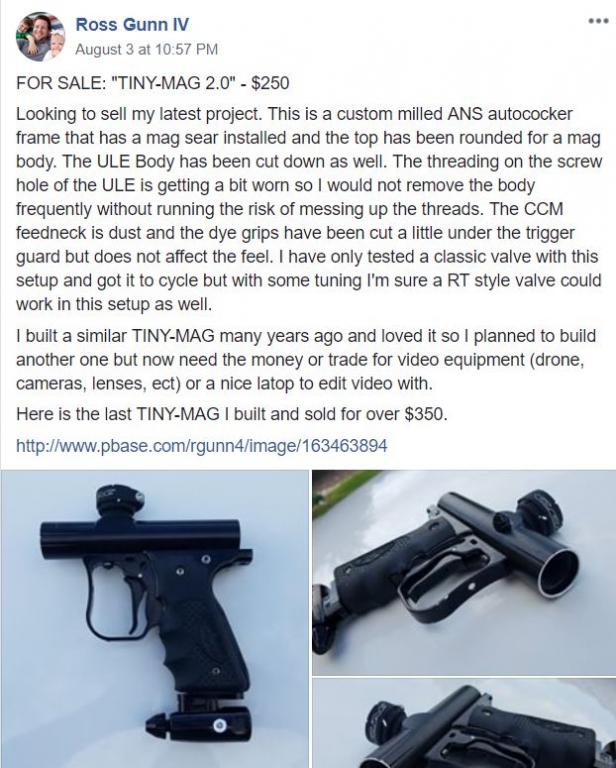

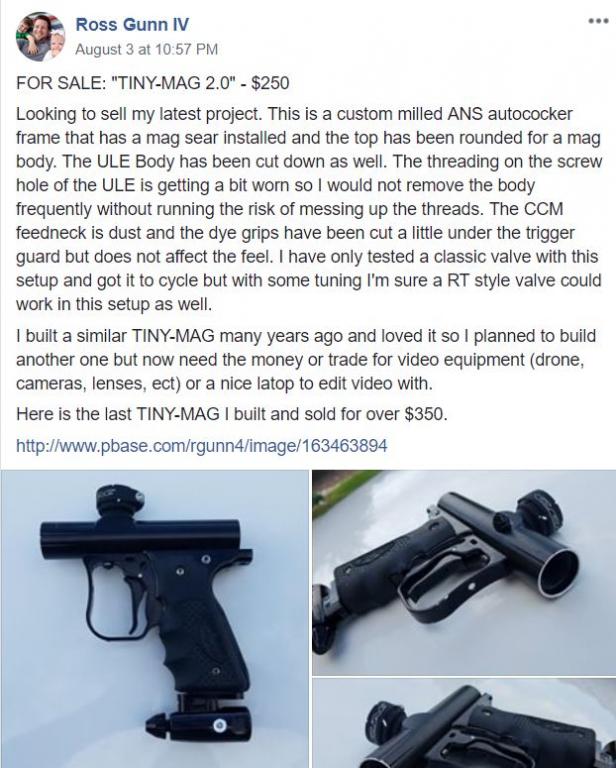

Saw it recently in the "AGD Automag Owners and Discussion B/S/T" Facebook Group:
Rather than combine the rail and body like X-Mags, a Deflator, or an XMT Evo, combine the grip and rail to really shrink things.

[JimBobFett]

Ultralight Hybrid

The old style was a little narrow at .65" wide and left a little gap on a standard frame between the frame and rail. I widened this to .75" so it will match exact to the grip frame. I was also able to do away with the center bumps that were there for the sear pin.

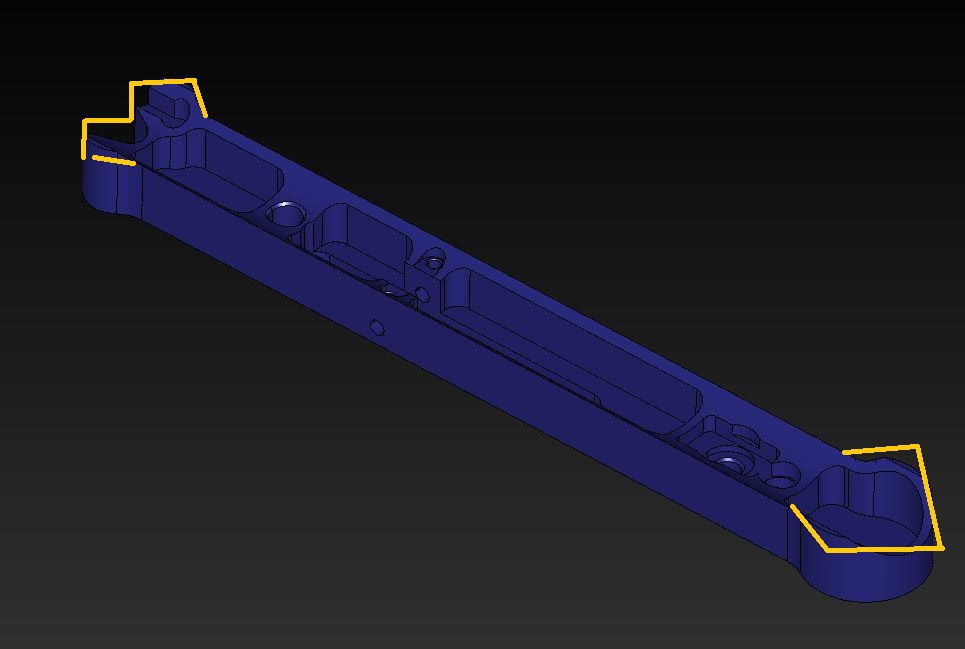

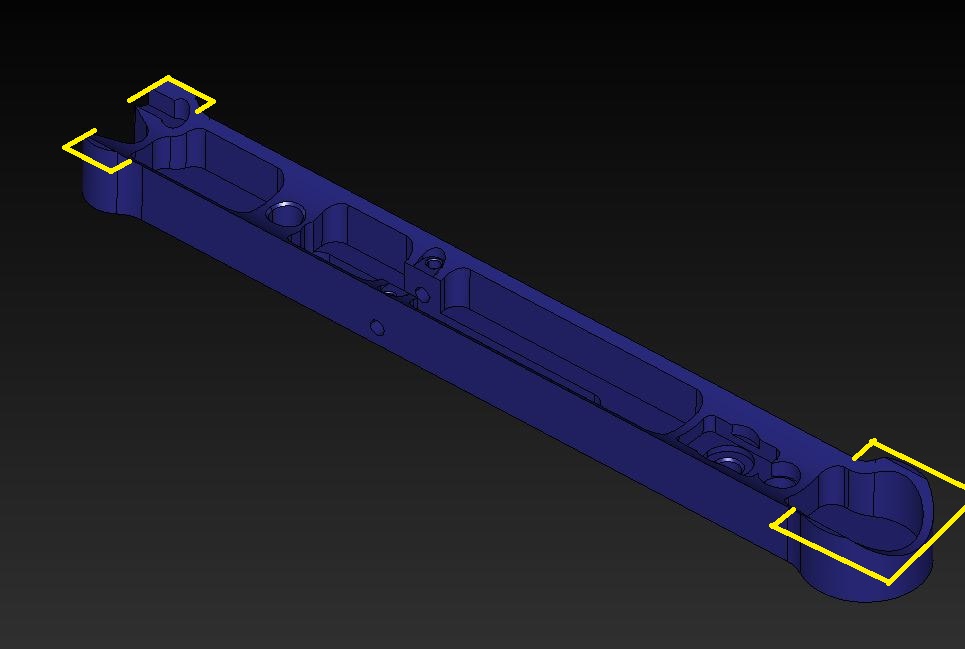

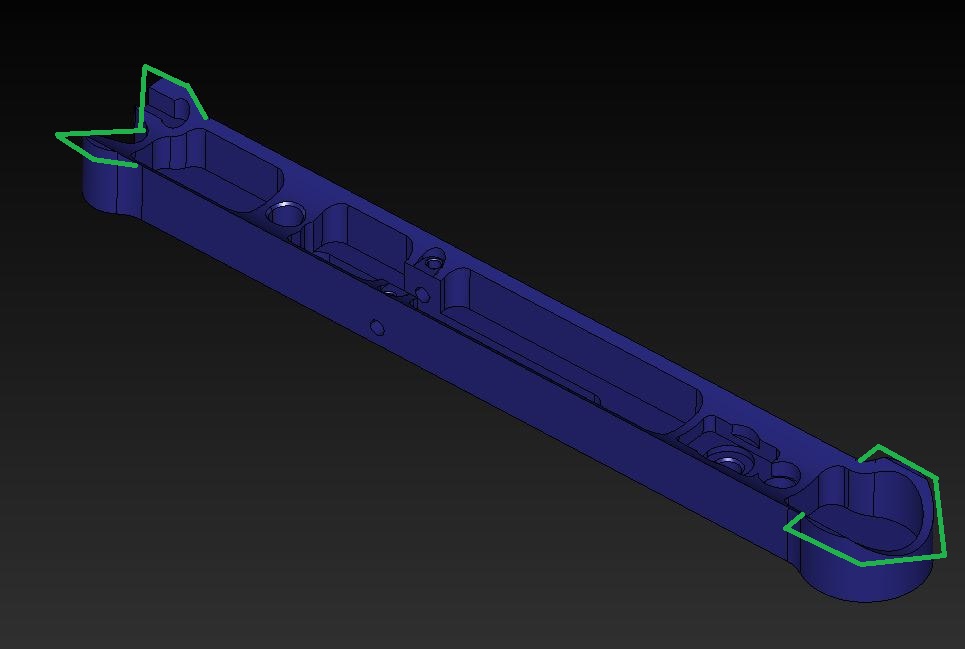

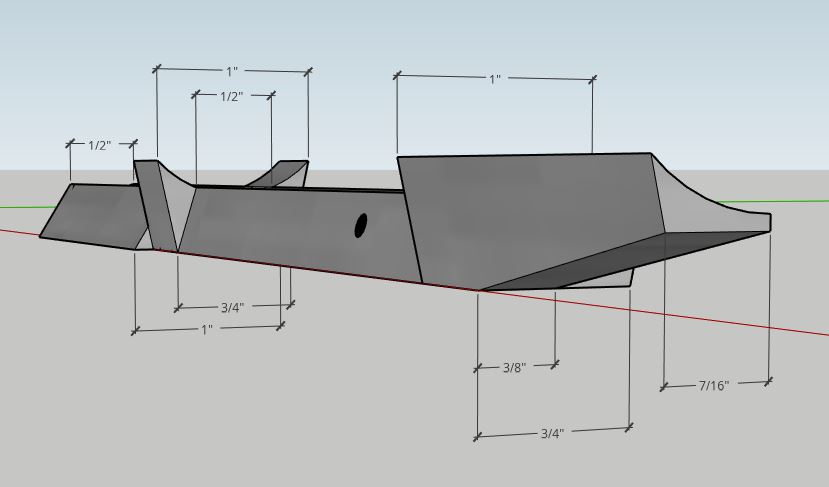

Don't know if its too late, but with all the other things going on I forgot to revisit this design. Instead of being 'rounded off' at the ends like a 'dogbone', how about something more geometric and squared off at the front and back? I don't know about a full RT slot fore-grip (maybe, maybe not) but I'm thinking something with all 90 degree angles or maybe something in the shape of an "arrow"? Not sure what exact angles would work out best, but something along these lines...? I actually just picked up an original AM "dogbone" last week from Le Capitan Pinky, so looking at something different I guess. If you're at the "I think I've designed enough for now" point, no big deal.
ultralight-hybrid_orig (2).jpg
ultralight-hybrid_orig (1).jpg

[luke]

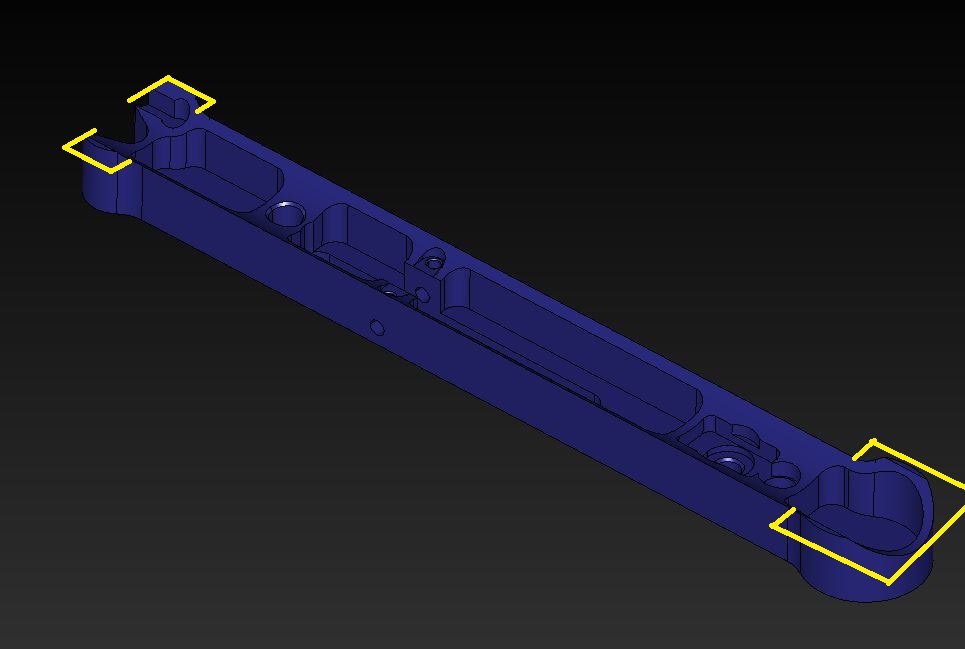

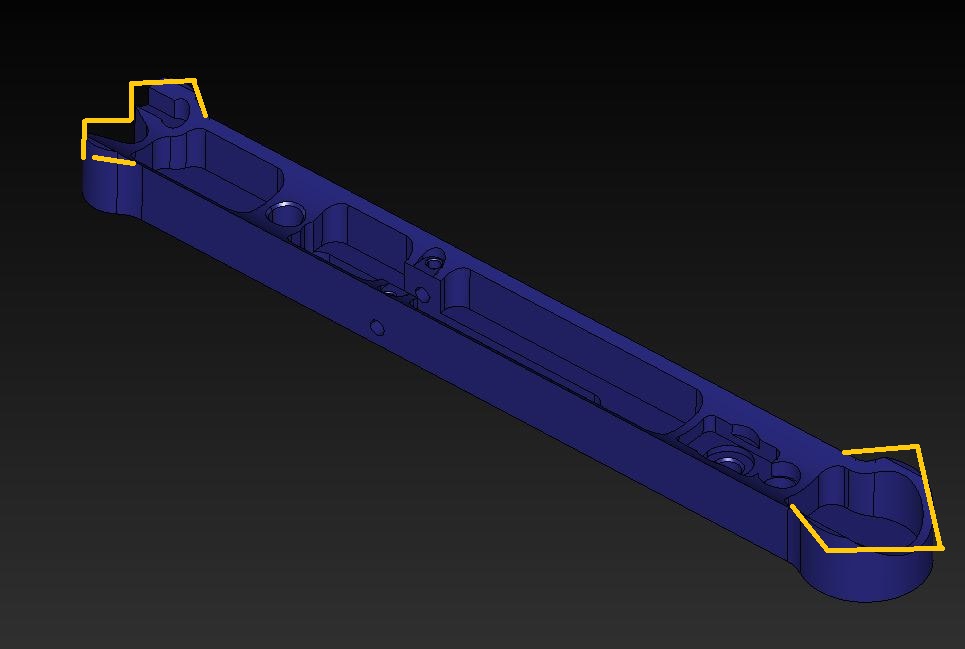

In general, inside square or inside 90* cuts aren't doable or adds to many setups to make it viable or attractive to the machinist to want to do it. Any of those designs would need to be done in one setup, so looking from the top view consider the profile is being machined with a round cutter, all those 'inside' square corners will be rounded.

Nothing wrong with the ideas but I don't think they would be viable as as store item, I can machine a custom rail but there would be additional costs involved to do a one-off.

[luke]

[ATTACH=CONFIG]100053[/ATTACH]

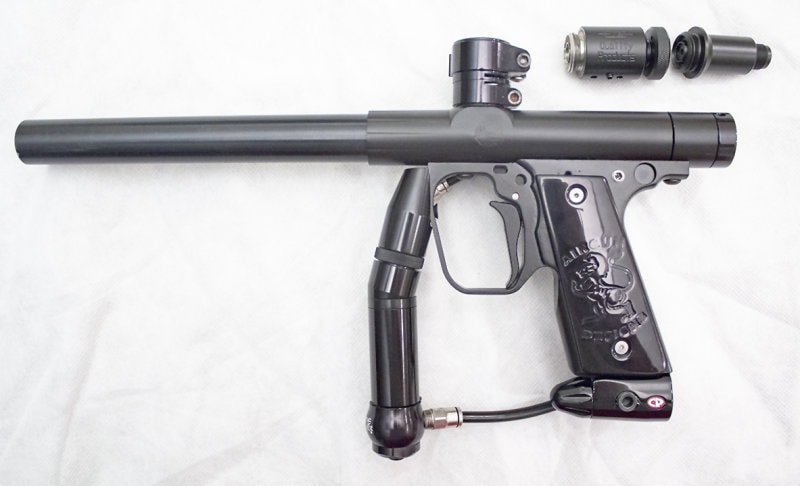

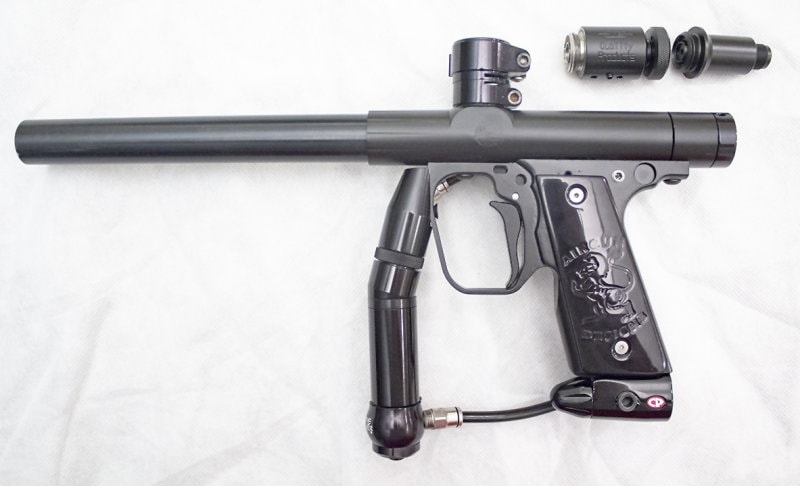

I've done one similar to this before, even carried it on my website, only sold two.

[JimBobFett]

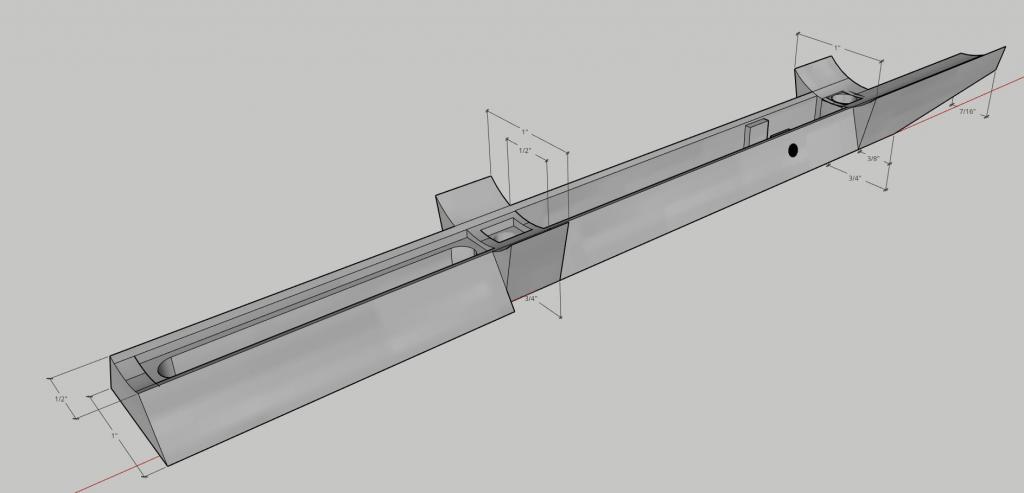

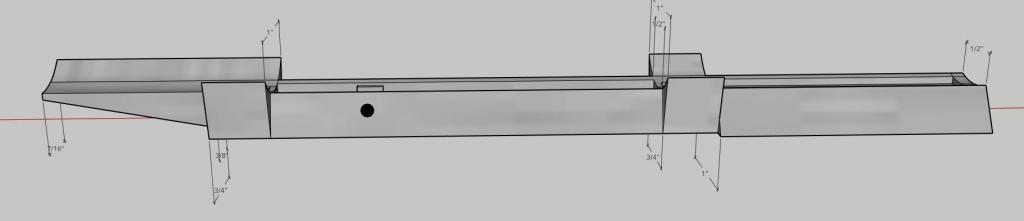

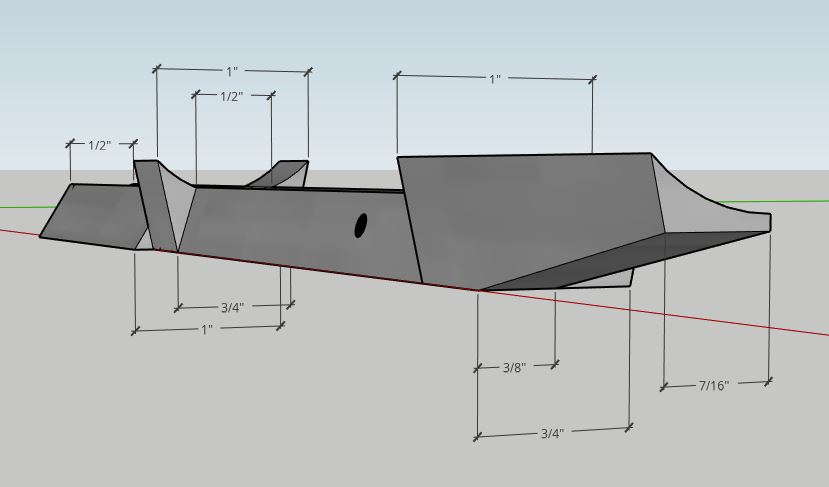

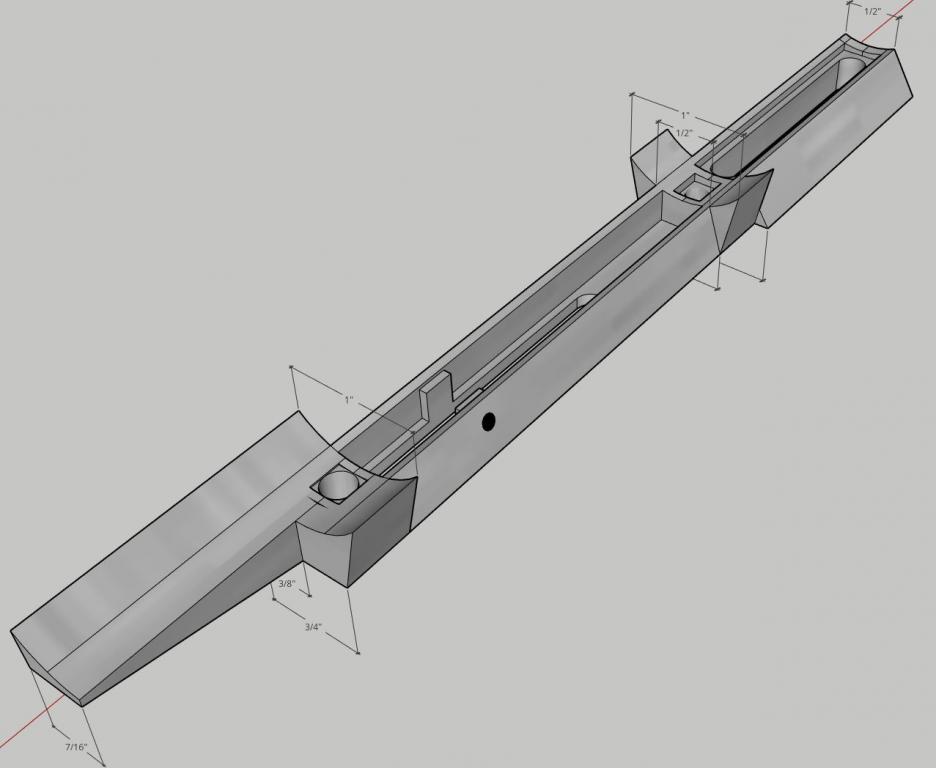

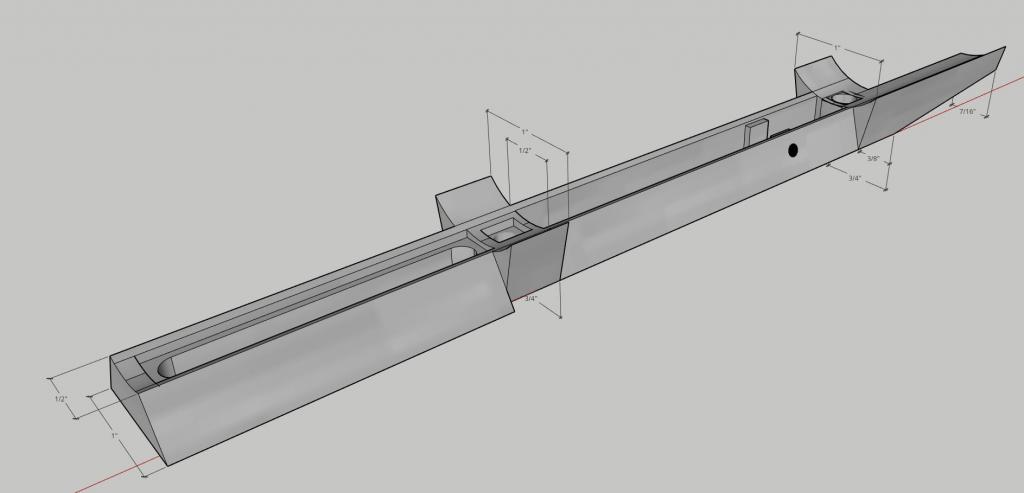

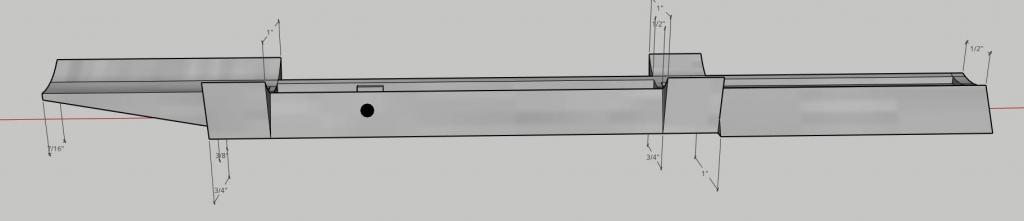

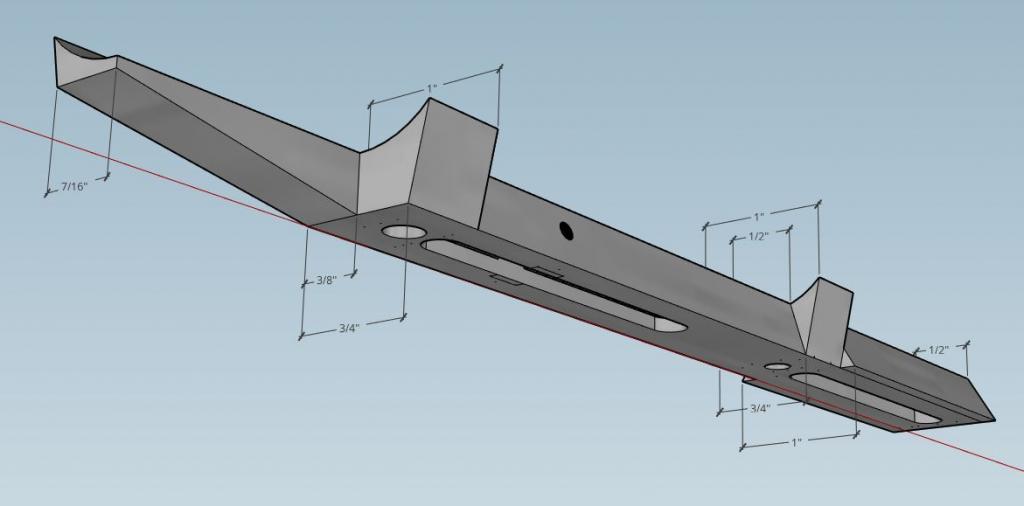

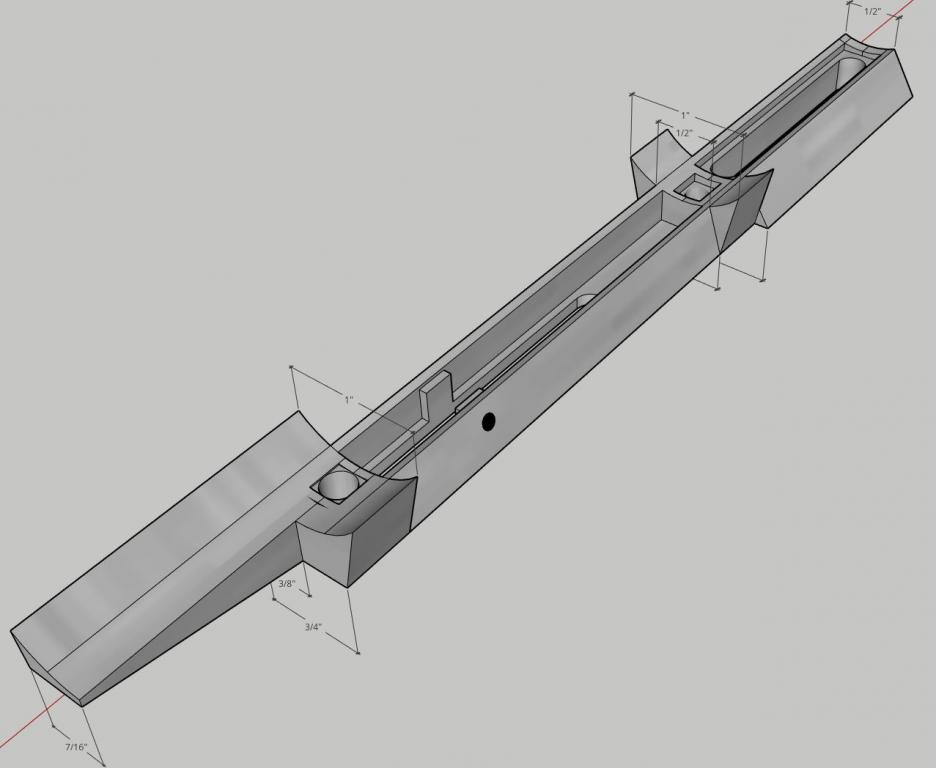

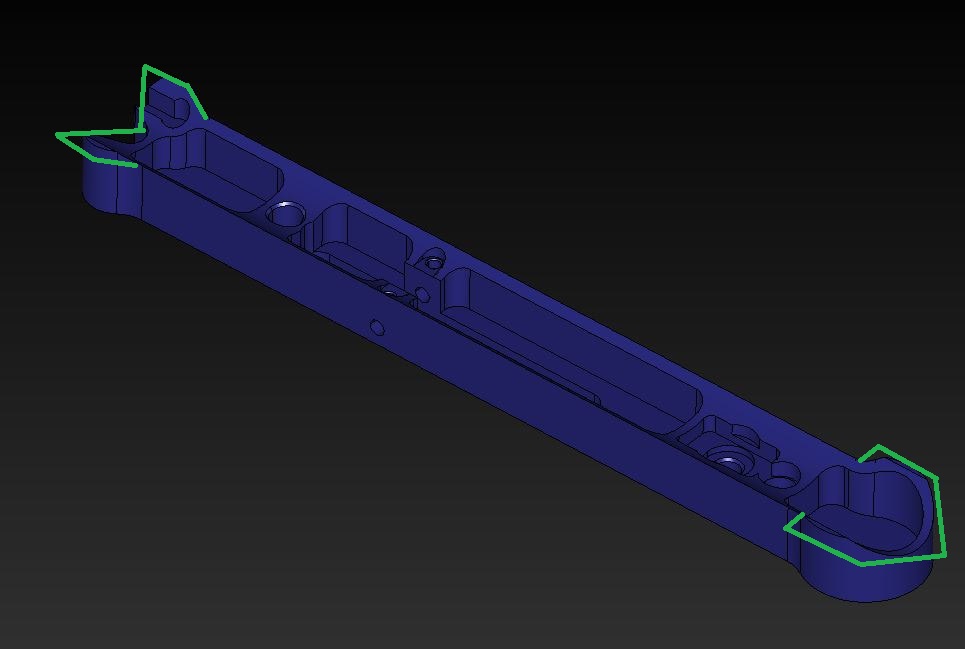

I'm not at work so I couldn't whip it up in Inventor/Solidworks, but had an idea... needs to have the inside corners rounded off, maybe outside too. I was thinking maybe the front gets rounded off too somehow or something, but this is the general idea...
