Hybrid RTP Rails

[alpha_q_up23]

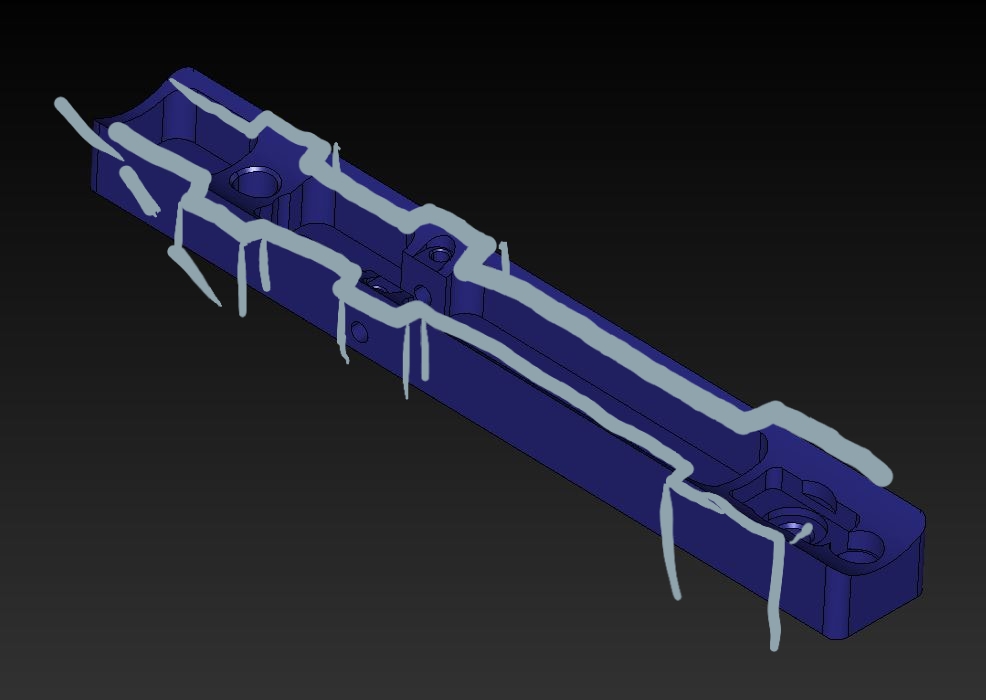

Im thinking minimalist... rear valve channel isnt needed. Foregrip isnt needed. Just mill it down to just whats in the box...[ATTACH=CONFIG]100029[/ATTACH]

Not gonna lie, at a first I thought there'd be no use for this design then I saw the EP block I have sitting waiting for a stock rail for me to hack up and a pistol mag I've been wanting to do and then thought never mind.

[luke]

Hoping to grab one of these in AM Length, Epsilon style.

No problem. I just designed one but need to add the ULE milling. I'll post a screen shot of the CAD when it's done.

[alpha_q_up23]

Also how about more wavy rails, I like wavy

[luke]

Also how about more wavy rails, I like wavy

For sure. I've wanted to do the Wave Rail on the RTP Hybrid platform since before those were released. :)

[alpha_q_up23]

Ooooooooooooooooooooooooo hopefully there will be more wave like rails that come out too I'm a solid fan of the wave rail

[luke]

Hoping to grab one of these in AM Length, Epsilon style.

Looks good, I like the bottom detail, cleaner the the AM version, the rest of the design is identical to the old one.

[Gundam V]

I like that style a lot, are you doing pre-orders? If not, how far off from release are they?

[luke]

We'll call it the Ultra Mini

Rail is 3/4" wide to match most grip frames, lines up with the front of standard grip frames and a little longer in the back to help support the valve.

[luke]

Ultralight Hybrid

The old style was a little narrow at .65" wide and left a little gap on a standard frame between the frame and rail. I widened this to .75" so it will match exact to the grip frame. I was also able to do away with the center bumps that were there for the sear pin.

[luke]

New Beta Hybrid (8" long)
Was thinking about doing a medium length beta, somewhere around 8.55"(?)

[alpha_q_up23]

Ooooooh what are the projected prices for these, need to start saving my pennies

[luke]

Ooooooh what are the projected prices for these, need to start saving my pennies

Same as all the others.

[JimBobFett]

Yerp... ultra mini! Awesome.

I was going to mill down an rt pro rail to make that... but i was going to go to 1/2" wide around the sear slot (or maybe some windows into the sear pocket shaped like either a series of holes or like the indents on the ule rails to give it an even slimmer look. That part sticking out behind the grip to support the valve seems boxy... how about either a 30-45 degree slope or step? Hell, I was gonna cut it off 100% but I get it... maybe a little meat for the valve.

Dogbone looks sweet too. But I was thinking less rounded at the ends and more squared off/angular where it flares out front & back. Like a capitol "I" with serifs.

I had a new idea for the front grip mounts too... but that will require me to draw something out.

[Gundam V]

If its rtp hydrid rail either epsilon or beta style. I'm on board for it, just let me know when your gonna start accepting payment for it. Also, I have one question, would you be willing to do a one off and make one that accepts winged trigger frames. Just got my hands on a z grip and wanna use it on this. Don't wanna mill off the wings on the frame.

Sent from my SAMSUNG-SM-G935A using Tapatalk
