Hybrid RTP Rails

[awo702]

[luke]

Have you put air through that yet?

[awo702]

Have you put air through that yet?

The mp90 is tested but these parts were put together as a quick mock up.


Sent from my iPhone using Tapatalk

[luke]

The mp90 is tested but these parts were put together as a quick mock up.

LMK after you test that setup.

[awo702]

LMK after you test that setup.

[bowcycle]

What slot width do you recommend, I can make that adjustment for future rails?

The internet says .234" is the width to receive the keymod nuts.
What width did you cut these?
It took barely any work with the files.

I think Dano said the M-Lok requires a .276" slot.
That was more work than I wanted to do to the rail, hence why I modded the M-Lok section instead on that first one.

[luke]

Yea, .234" is a little loose for a standard foregrip. It would work but I think I'll leave the current design alone and just let the guys file the slot if you want to run those parts. (BTW, I machine the RTP type slot at .200")

[luke]

bowcycle, post up some pictures as those builds come together, I'm curious to see what you come up with.

[luke]

awo702, your mini tac looks sweet, when is it going to ano? You gotta start sharing some of your builds with AO, stop being so stingy. :)

[awo702]

awo702, your mini tac looks sweet, when is it going to ano? You gotta start sharing some of your builds with AO, stop being so stingy. :)

[luke]

Currently trying to clean up a few loose ends but I've pretty much decided to move slug bodies to the top of the list.

[Gundam V]

Hell's yeah!!!!! Looking forward to see what you got in store for those slugs bodies. [emoji38]

Sent from my SAMSUNG-SM-G935A using Tapatalk

[bowcycle]

Have one rail on a normal ULE at the momemt and working to make sure one gets on a sydarm.
Pics after Thanksgiving.

[bowcycle]

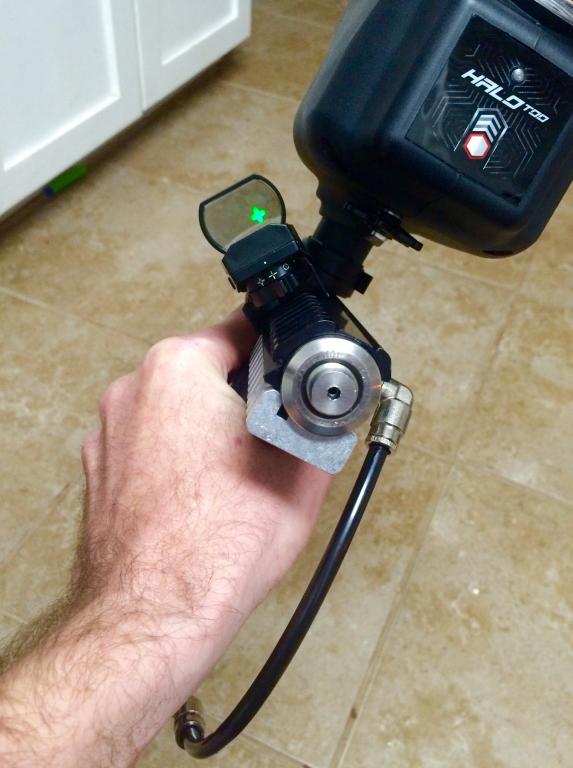

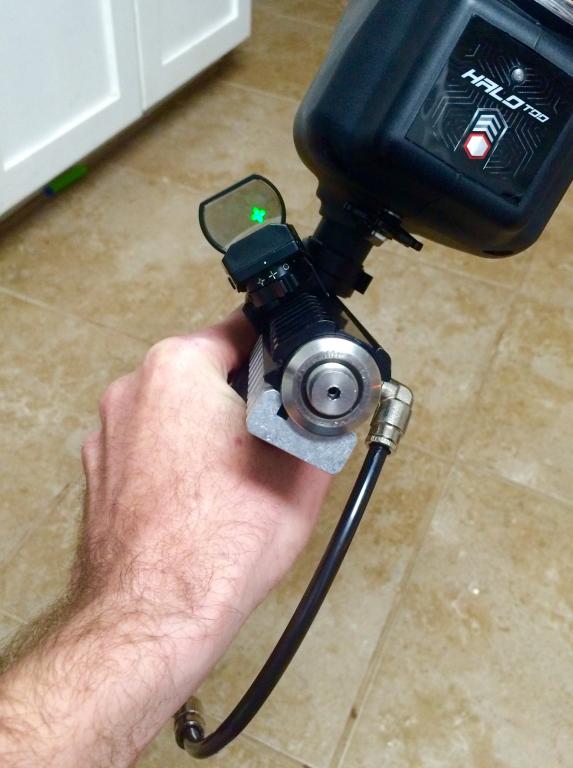

These rails are F’n cool. Here’s my MiniTac so far.

this needs to use a cap'd valve and cut the rail down to match.

[bowcycle]

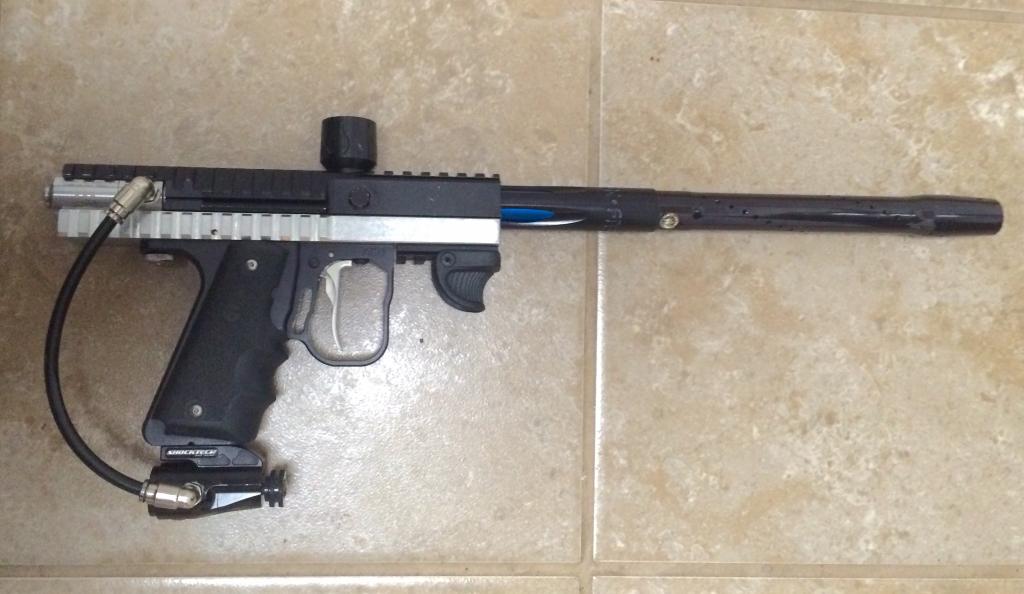

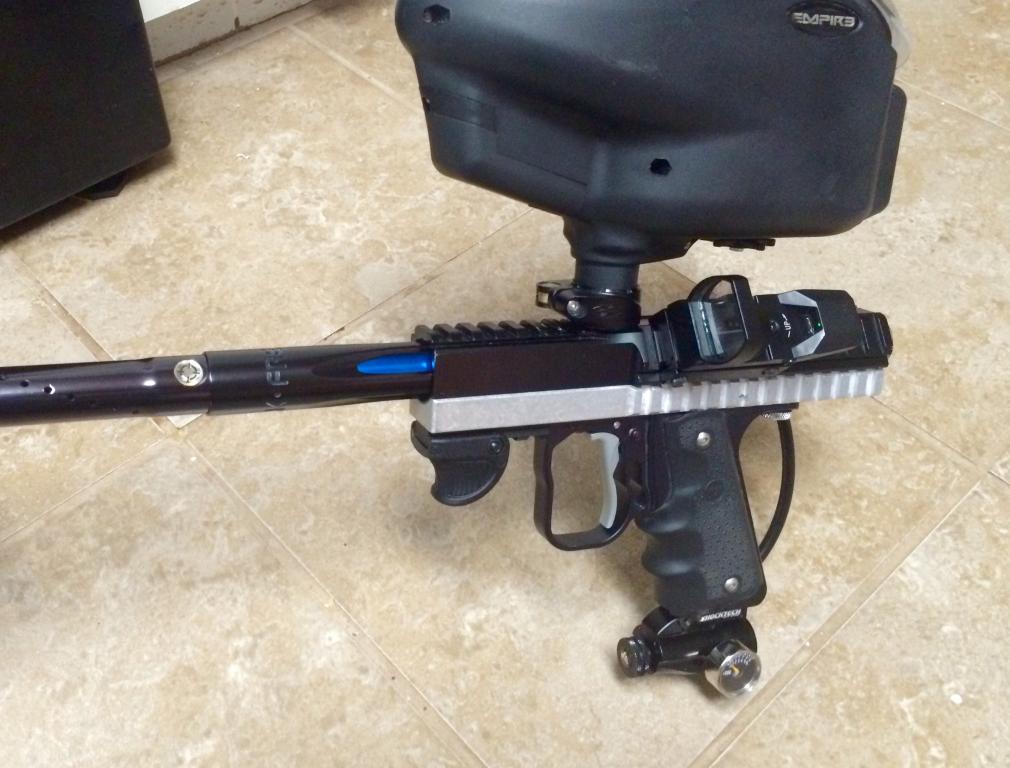

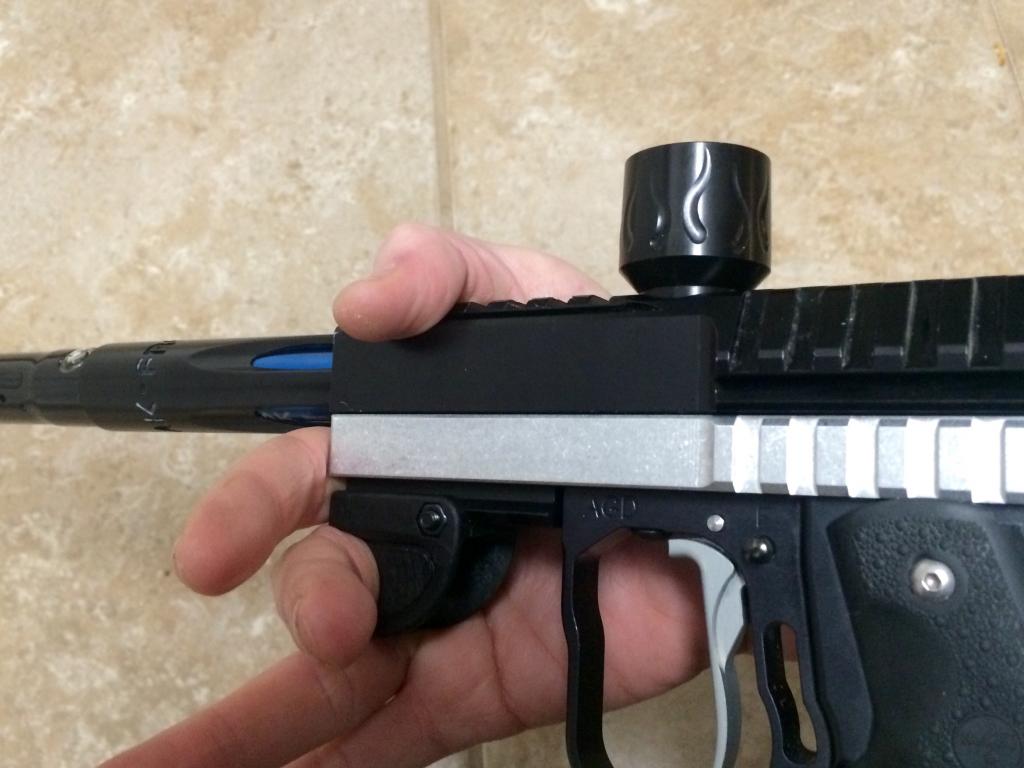

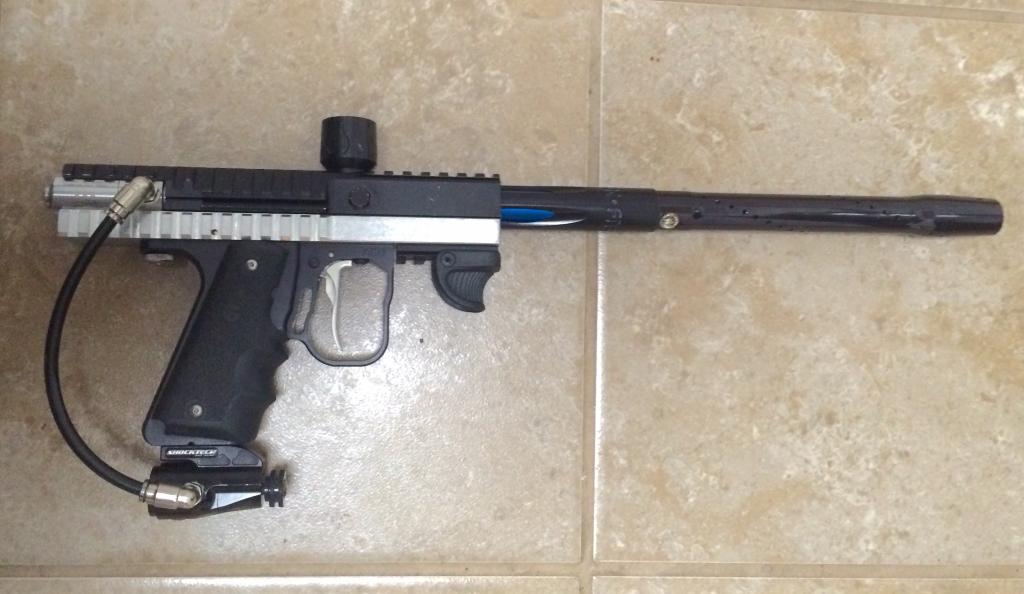

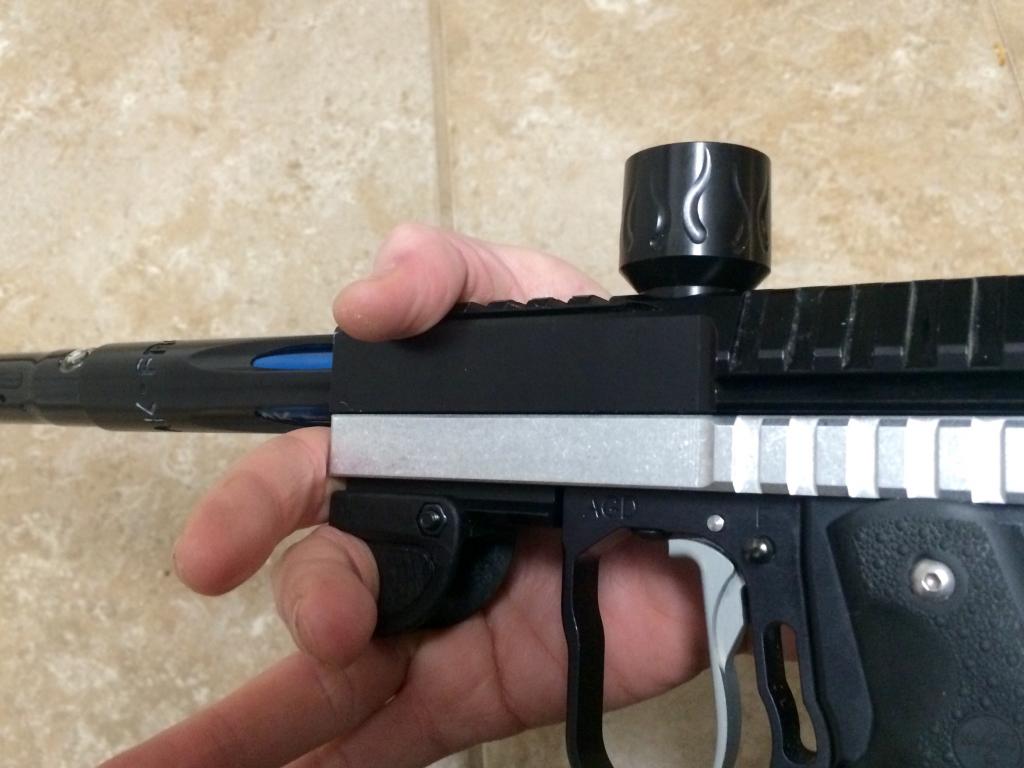

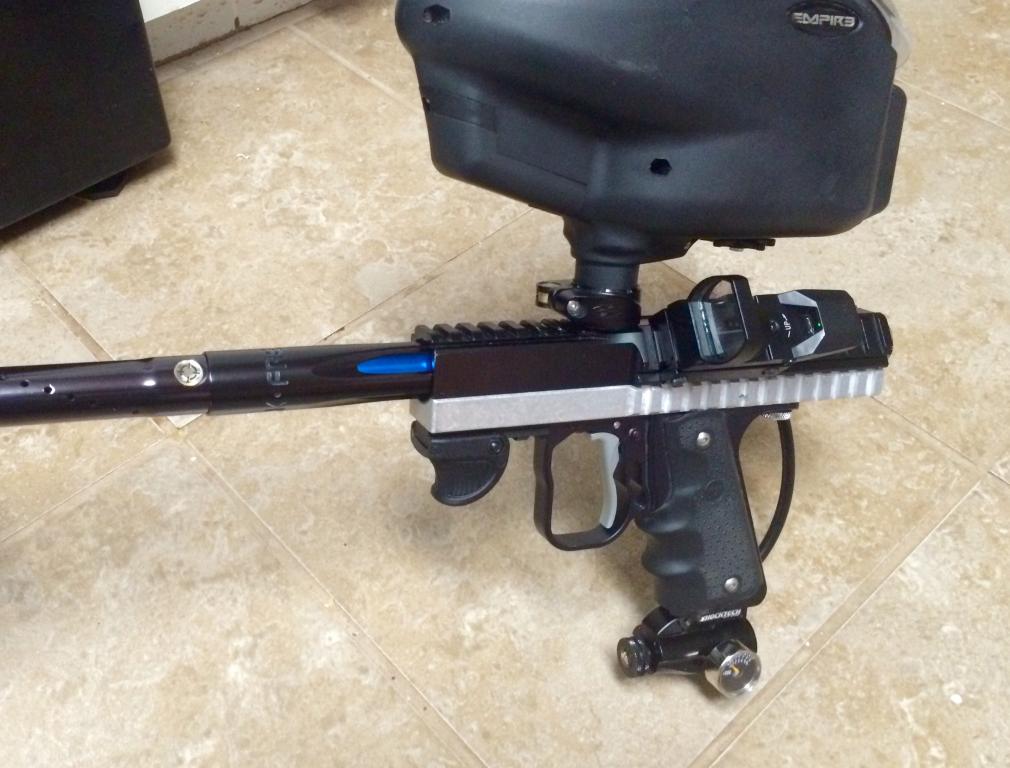

Here's my first build with the tac rail. You've probably seen this one in the BST, but that's only because I specifically bought 1 rail to build and sell. It's actually a lot of fun to shoot and I was surprised how well it works with a red dot on the angled rail.






Working on the keeper with my son and will have pics of it up soon.
