Hybrid RTP Rails

[awo702]

I have an idea for a Tac rail if someone can loan me a body..

I have one that you milled the back on to show the valve, will that work?


Sent from my iPhone using Tapatalk

[luke]

I have one that you milled the back on to show the valve, will that work?

I dont recall exactly what I did, can you shoot me a picture?

[awo702]

I dont recall exactly what I did, can you shoot me a picture?

[luke]

Yea that will work, can I borrow it?

[awo702]

Yea that will work, can I borrow it?

No problem. Sounds like this would be pretty cool.


Sent from my iPhone using Tapatalk

[awo702]

[luke]

Hard to say at this point, I'll have to do the CAD work.

[luke]

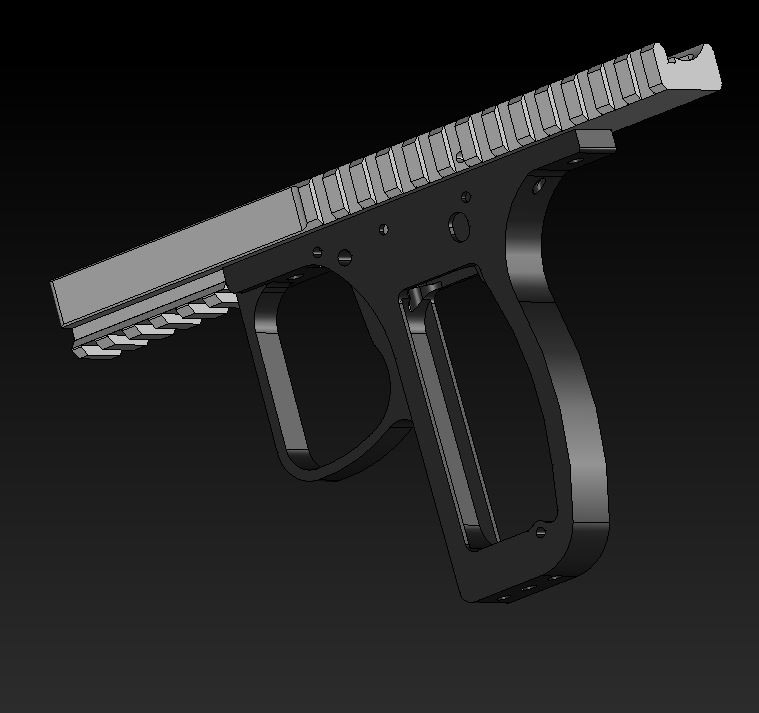

Here's where we are, the Tac-One Hybrid rail lines up with the front back and sides of the AGD body and the Pictanny design on the rail sides is non functional.

The Pictanny foregrip mount attaches to the rail just like a foregrip (Two screws) The foregrip mount would be offered as a separate product and could be used on other rails.

Tac One Hybrid 9 CAD.JPG

[awo702]

Here's where we are, the Tac-One Hybrid rail lines up with the front back and sides of the AGD body and the Pictanny design on the rail sides is non functional.

The Pictanny foregrip mount attaches to the rail just like a foregrip (Two screws) The foregrip mount would be offered as a separate product and could be used on other rails.

[ATTACH=CONFIG]100334[/ATTACH]

That looks pretty awesome luke!


Sent from my iPhone using Tapatalk

[luke]

LOL, not super exciting but it will go with the body. Not sure if any of those guys are around anymore but I was hounded for years to make this rail. :)

I did try and incorporate the foregrip mount into the rail but there wasn't enough room on the slug rails basic design.

If there's no interest (i.e. orders) this wont go to production, just putting it out there to gauge interest.

[Gundam V]

I'm not gonna lie, part of me wants to buy a tac-one body just to use this rail. If it does go into production, I may need to pick this one up. Even though I have a lot on my plate right now in term of projects. I think this would look bad ass with a woodland camo style anodize, maybe a black and gray acid wash, possibilities are endless. Hell even taking inspiration from all the old eclipse splash or micro mag anodize could look bad ass. Just my 2 cents though.

Sent from my SAMSUNG-SM-G935A using Tapatalk

[bowcycle]

I really like the almost eclipse-style look to the milling on the back of the tac rail.
That it matches up with a tac-1 body just makes it even cooler.

like Gundam, if this goes into production, I'm going to have to buy a tac-1 body just to have this rail.

[luke]

I would like to sell at least 5 of the rails to make it worth doing the programing.. :)

[awo702]

I would like to sell at least 5 of the rails to make it worth doing the programing.. :)

[luke]

Cutting the front down to 8" is no problem but would you leave the back of the rail the same?
